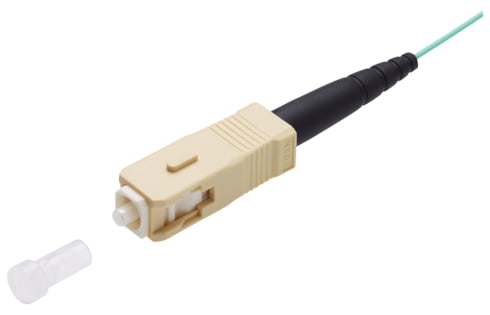

Pigtail SC PC, beige, OM3 turquoise, Bm/3, 2.5 m (R307388)

Name: Pigtail SC PC, beige, OM3 turquoise, Bm/3, 2.5 m (R307388) - ДП "Сінергія"
SKU: R307388

Warning: Undefined variable $post in /home/synergia/public_html/wp-content/plugins/oxygen/component-framework/components/classes/code-block.class.php(133) : eval()'d code on line 3

Warning: Attempt to read property "ID" on null in /home/synergia/public_html/wp-content/plugins/oxygen/component-framework/components/classes/code-block.class.php(133) : eval()'d code on line 3
Pigtail SC PC, beige, OM3 turquoise, Bm/3, 2.5 m (R307388)

Pigtail SC PC, beige, OM3 turquoise, Bm/3, 2.5 m (R307388)

Locking type latched push-pull. Injection-molded PBT housing, UL 94 V-0 (flammability index).

Артикул: R307388 Категорія: Misc

Scope of supply

Semi-tight buffer Ø 0.9 mmone side fitted with SC connector

Mechanical Data

Color	turquoise/aqua
Cable length	2.5 m

Technical Data

Conductor type FO	dry semi-tight buffer, strippability > 1.5m
Fiber type	Multimode (MM)
Fiber class	OM3
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Cable type	Pigtail
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen
Cable overall diameter	Ø 0.9 mm
Connector type (A)	SC
Connector color (A)	beige
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Return loss grade RL (A)	3
Attenuation grade IL (A)	Bm
Standard	SC connector acc. to IEC 61754-4
