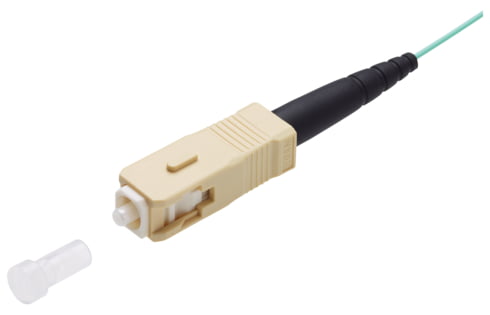

Pigtail SC PC, beige, OM4 turquoise, Bm/3, 2.5 m (R802912)

Pigtail SC PC, beige, OM4 turquoise, Bm/3, 2.5 m (R802912)

Pigtail SC PC, beige, OM4 turquoise, Bm/3, 2.5 m (R802912)

Locking type latched push-pull. Injection-molded PBT housing, UL 94 V-0 (flammability index).

Артикул: R802912 Категорія:

Scope of supply

  • Semi-tight buffer Ø 0.9 mmone side fitted with SC connector

Mechanical Data

Color

turquoise/aqua

Cable length

2.5 m

Technical Data

Conductor type FO

dry semi-tight buffer, strippability > 1.5m

Fiber type

Multimode (MM)

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

1

Cable type

Pigtail

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

Cable overall diameter

Ø 0.9 mm

Connector type (A)

SC

Connector color (A)

beige

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

3

Attenuation grade IL (A)

Bm

Standard

SC connector acc. to IEC 61754-4
