Semi-tight buffer Ø 0.9 mm with a strippability of more than 150cm and one side fitted with E-2000™ connector. Connector E-2000™ with self-closing dust- and laser shutter
Set of Pigtails in 12 different colors yellow, green, blue, red, black, orange, grey, turquoise, pink, brown, violet and white, semi-tight buffer Ø 0.9 mm with a strippability of more than 150cm and one side fitted with E-2000™ connector.

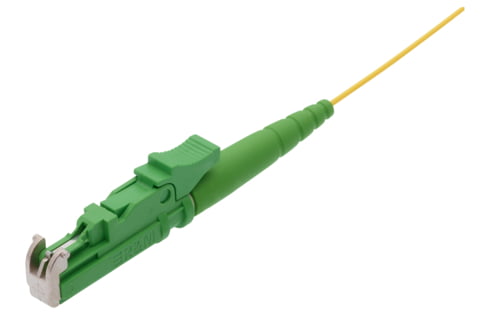

Pigtail with semi-tight buffer PA/PBT, Ø 0.9 mm, yellow, green, blue, red, black, orange, grey, turquoise, pink, brown, violet and white, singlemode ITU-T G.652.D/G.657.A1 9/125 µm (OS1, OS2) compatible, length 2.5 m, buffer strippability > 150cm. Fitted with one E-2000™ (LSH) connector in accordance with IEC 61754-15 and EN 186270. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connectors tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolled environment) and category E (extreme environment). Green connector housing (singlemode) and green lever, material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and silver-colored metal dust shutter.
Optical specifications (random mated):
Performance acc. to IEC 61753-1 (Table A.12):
Insertion loss (IL) Grade A for 97% of the tested specimen: = 0.15 dB / typical = 0.07 dB
Return loss (RL) Grade 1: = 80 dB during 1000 mating cycles / typical = 90 dB
Mechanical specifications:
Mating cycles: delta IL < 0.2 dB after 1000 mating cycles
Pull-out force fiber pigtail:= 5 N
