PRIME-3U-Sub-rack-ANT-4x48-lcdapcc-os2 (R850801)

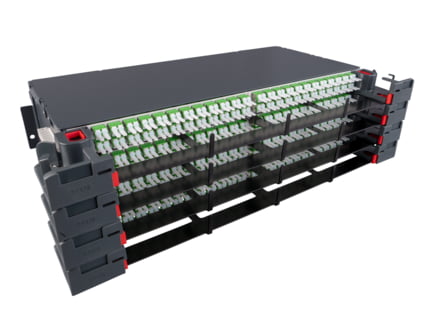

3U PRIME Sub-rack fully populate for the R&M ETSI Cabinet

Артикул: R850801 Категорія: Misc

PRIME-3U-Sub-rack fully populated with 4 pcs. PRIME-3/4U-FTU (Fiber Termination Unit). The Sub-rack is for the cable entry from the left side configured. The Sub-rack is designt for a toolless installation in our PRIME-ETSI-Cabinet assortement.

Scope of supply

3U Sub-rack fully populated with 4 pcs. 3/4U-FTU

2 pcs. Fixation dowle

Installation manual

Environmental Characteristics

Operation temperature	-25 °C to +70 °C / -13 °F to +158 °F
Transport / store temperature	-40 °C to +85 °C / -40 °F to +185 °F

Mechanical Data

Color	metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)
Material	sheet metal and plastic
Weight (Kg)	12.58

Technical Data

Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	192
Connector type (A)	LC-Duplex
Fiber Count	384
Connector color (A)	green
Polishing plug (A)	APC 8°
Protection class IP (A)	IP 20
Return loss grade RL (A)	1
Attenuation grade IL (A)	C
Rack mounting version	PRIME-ETSI
Assembly	fully populated
Mounting frame type	Slide-in unit
Sleeve material	ceramic
Standard	Adapter and connector in acc. with IEC 61754-20 Pigtails in acc. with color code DIN VDE 0888
Halogen free, acid gases	Pass
RoHS	Pass
