PRIME-3U-Sub-rack-HS-4x24-lshapcc-os2 (R850369)

PRIME-3U-Sub-rack-HS-4x24-lshapcc-os2 (R850369)

PRIME-3U-Sub-rack-HS-4x24-lshapcc-os2 (R850369)

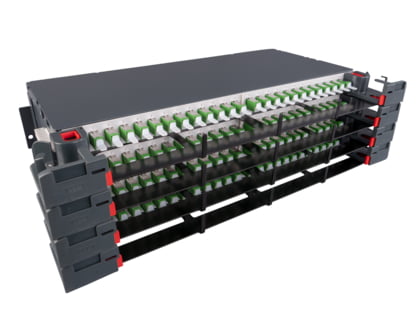

3U PRIME Sub-rack fully populate for the R&M ETSI Cabinet

Артикул: R850369 Категорія:

PRIME-3U-Sub-rack fully populated with 4 pcs. PRIME-3/4U-FTU (Fiber Termination Unit). The Sub-rack is for the cable entry from the left side configured. The Sub-rack is designt for a toolless installation in our PRIME-ETSI-Cabinet assortement.

Scope of supply

3U Sub-rack fully populated with 4 pcs. 3/4U-FTU

2 pcs. Fixation dowle

Installation manual

Environmental Characteristics

Operation temperature

-25 °C to +70 °C / -13 °F to +158 °F

Transport / store temperature

-40 °C to +85 °C / -40 °F to +185 °F

Mechanical Data

Color

metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)

Material

sheet metal and plastic

Weight (Kg)

11.86

Technical Data

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

96

Connector type (A)

E-2000™

Fiber Count

96

Connector color (A)

green

Polishing plug (A)

APC 8°

Protection class IP (A)

IP 20

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

PRIME-ETSI

Assembly

fully populated

Mounting frame type

Slide-in unit

Sleeve material

ceramic

Standard

Adapter and connector in acc. with IEC 61754-15 and EN 186270

Pigtails in acc. with color code DIN VDE 0888

Halogen free, acid gases

Pass

RoHS

Pass
