PRIME-Fiber Breakout Unit (FBU), 24, E-2000-Simplex, C2, G.652.D, (R858609)

Name: PRIME-Fiber Breakout Unit (FBU), 24, E-2000-Simplex, C2, G.652.D, (R858609) - ДП "Сінергія"
SKU: R858609

PRIME-Fiber Breakout Unit (FBU), 24, E-2000-Simplex, C2, G.652.D, (R858609)

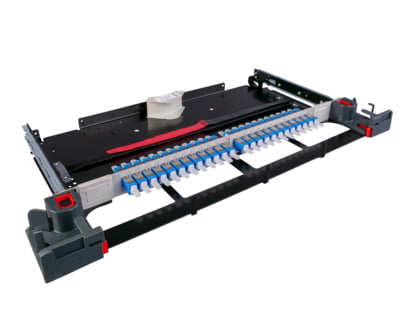

PRIME 3/4U FBU (Fiber Breakout Unit), fullypopulated

Артикул: R858609 Категорія: Misc

3/4U PRIME FBU is a breakout unit. Simple connection of pre-assembled cables. Feeding and connecting of the cables from the front and back side. Attaching the fan-out cable with safety strap. Suitable for PRIME-3U rack ETSI and 19 "rack mounting.

Scope of supply

3/4U FBU-Unit fully assembled

1 pcs. Velcro tape

1 pcs. Laser sign, small

Installation manual

Environmental Characteristics

Operation temperature	-25 °C to +70 °C / -13 °F to +158 °F
Transport / store temperature	-40 °C to +85 °C / -40 °F to +185 °F

Mechanical Data

Color	metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)
Material	sheet metal and plastic
Weight (Kg)	1.75

Technical Data

Number of connectors (A)	24
Connector type (A)	E-2000™
Fiber Count	24
Connector color (A)	blue
Polishing plug (A)	PC
Protection class IP (A)	IP 20
Attenuation grade IL (A)	C
Rack mounting version	PRIME-3U-Sub-rack, ETSI/19"
Assembly	fully populated
Mounting frame type	Slide-in unit
Sleeve material	ceramic
Standard	Adapter acc. with IEC 61754-15 and EN 186270
Halogen free, acid gases	Pass
RoHS	Pass
