PRIME-Fiber distribution-side-64x5mm (R851197)

PRIME-Fiber distribution-side-64x5mm (R851197)

PRIME-Fiber distribution-side-64x5mm (R851197)

PRIME Fiber distribution box, side, 64x5mm

Артикул: R851197 Категорія:

The PRIME fiber divider can be mounted laterally in the PRIME-ODF cabinet on the left or right side. Allows attachment of the incoming NW10 protective tubes or cables for a fine fiber distribution of cables up to max. 64 x 5mm transport tubes. The protective tubes can be inserted without tools.

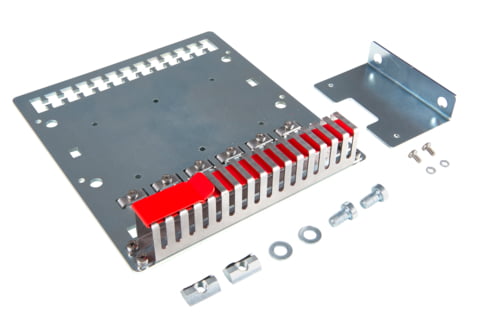

Scope of supply

1 pcs. Fiber distribution box, pre-assembled

1 pcs. Mounting bracket

2 pcs. T-Nuts M8

2 pcs. Srews incl. washer M8

Mechanical Data

Color Code RAL

5011 Steel blue

Material

Al, 1.5mm, blue chromated

Weight (Kg)

1.3

Technical Data

Assembly

empty

Distributor housing type

Fiber distribution box

Prod
