PRIME-Fiber Termination Unit (FTU), Left, Heatshrink splice protection, 48, SC-Simplex, C2, G.652.D, DIN VDE, (R858601)

PRIME-Fiber Termination Unit (FTU), Left, Heatshrink splice protection,  48, SC-Simplex, C2, G.652.D, DIN VDE, (R858601)

PRIME-Fiber Termination Unit (FTU), Left, Heatshrink splice protection, 48, SC-Simplex, C2, G.652.D, DIN VDE, (R858601)

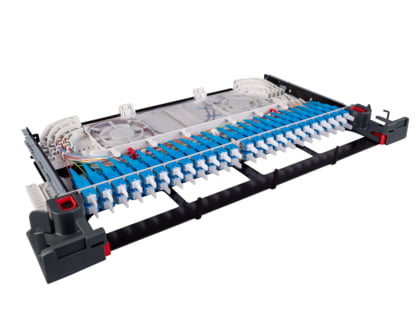

PRIME 3/4U FTU (Fiber Termination Unit), fully populated

Артикул: R858601 Категорія:

3 /4U PRIME FTU is the splice patch unit. The basic fiberinlay is suitable for 24/48 HS shrinkage contactors. Depending on the number of fibers, up to three additional MCM splice trays are equipped for 24/48 HS each.

The fiber feed takes place via the left side. It can be connected up to 8x5mm transport tubes without tools. Suitable for PRIME-3U rack ETSI and 19 "Rack with back mounting.

Scope of supply

3/4U FTU-Unit fully assembled

4 pcs. Cable ties, small

4 pcs. Plastic clip, small

1 pcs. Laser sign, small

Installation manual

Environmental Characteristics

Operation temperature

-25 °C to +70 °C / -13 °F to +158 °F

Transport / store temperature

-40 °C to +85 °C / -40 °F to +185 °F

Mechanical Data

Color

metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)

Material

sheet metal and plastic

Weight (Kg)

2.4

Technical Data

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

48

Connector type (A)

SC

Fiber Count

48

Connector color (A)

blue

Polishing plug (A)

PC

Protection class IP (A)

IP 20

Return loss grade RL (A)

2

Attenuation grade IL (A)

C

Rack mounting version

PRIME-3U-Sub-rack, ETSI/19" BM

Assembly

fully populated

Mounting frame type

Slide-in unit

Sleeve material

ceramic

Standard

Adapter and connector in acc. with IEC 61754-4

Pigtails in acc. with color code DIN VDE 0888

Halogen free, acid gases

Pass

RoHS

Pass
