PRIME-Ribbon Termination Unit (RTU), Left, Ribbon Splice Protector 12F, 48, SC-Simplex, AM2, OM4, EIA/TIA/598-A, (R875328)

PRIME-Ribbon Termination Unit (RTU), Left, Ribbon Splice Protector 12F,  48, SC-Simplex, AM2, OM4, EIA/TIA/598-A, (R875328)

PRIME-Ribbon Termination Unit (RTU), Left, Ribbon Splice Protector 12F, 48, SC-Simplex, AM2, OM4, EIA/TIA/598-A, (R875328)

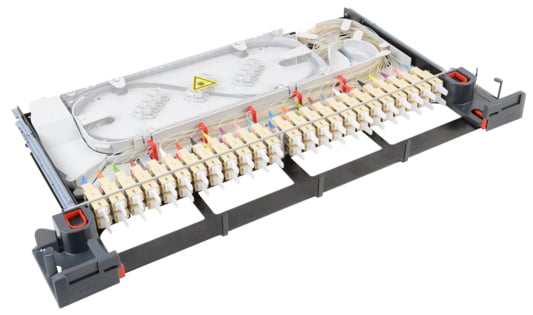

The 3/4U PRIME Ribbon Termination Unit RTU is a splice patch unitfor up to 96 fibers. The splice tray has an integrated splice protector holder for up to 24 heat shrink ribbonsplice protectors(8F / 12F). The ribbon fiber feed takes place via the left sideand is fully protected. The PRIME-RTU LE is suitable for PRIMESub-Racks with back mounting.

Артикул: R875328 Категорія:

Scope of supply

  • PRIME 3/4U RTU fully assembled

  • Flex-tube mounting plate with cover

  • Heat shrink splice protectors

  • Number labeling sheet 01 -12

  • Laser sign 28x34mm

  • Installation Guide

Environmental Characteristics

Operation temperature

-25 °C to +70 °C / -13 °F to +158 °F

Transport / store temperature

-25 °C to +70 °C / -13 °F to +158 °F

Mechanical Data

Color Code RAL

9005 Jet black / 7035 Light gray

Material

sheet metal and plastic

Weight (Kg)

2.4

Technical Data

Fiber type

OM4

Connector type (A)

SC-Simplex

Connector color (A)

green

Polishing plug (A)

APC 8°

Return loss grade RL (A)

1

Attenuation grade IL (A)

C

Rack mounting version

PRIME-Sub-rack "back mount" (ETSI, 19” or 21”)

Mounting frame type

Slide-in unit

Capacity (ports)

96F

Sleeve material

ceramic

Standard

Adapter and connector in acc. with IEC 61754-20

IEC 61753

Halogen free, acid gases

Pass

RoHS

Pass
