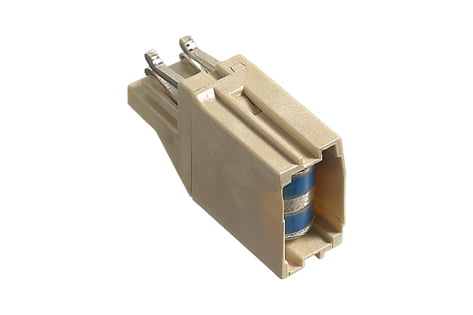

Protection Magazine 1 pair, equipped with arrestor with FS plus FS display (R304957)

Protection Magazine 1 pair, equipped with arrestor with FS plus FS display (R304957)

Protection Magazine 1 pair, equipped with arrestor with FS plus FS display (R304957)

Suitable for all VS Compact modules.

Артикул: R304957 Категорія:

Scope of supply

  • Protection magazine, empty

  • 3-electrode arrester 6x8 mm, 2x5 kA, 230 V

  • Installation instructions

Mechanical Data

Dimensions

24.0 mm x 7.0 mm x 13.0 mm / 0.945 in x 0.276 in x 0.512 in (W x H x D)

Technical Data

Number of pairs

1

Assembly

fully populated

VS version

overvoltage protection magazine

VS system

VS Compact

VS overvoltage protection with failsafe

with

VS Compact protection magazine for permanent personal and equipment protection, plugged in at the front. Fire classification V-0 (UL 94)

Equipped with 3-electrodearrester, design H Ø6 x 8 mm, 2 x 5 kA, 230V, with failsafe and failsafe display.
