Reference cable FO, LC-Simplex PC/UPC Grade R - FC-Simplex PC/UPC Grade Bm, Multimode OM3 (G50), Simplex 3.0mm, Eca (LSZH), 3m (R804266)

Name: Reference cable FO, LC-Simplex PC/UPC Grade R - FC-Simplex PC/UPC Grade Bm, Multimode OM3 (G50), Simplex 3.0mm, Eca (LSZH), 3m (R804266) - ДП "Сінергія"
SKU: R804266

Reference cable FO, LC-Simplex PC/UPC Grade R - FC-Simplex PC/UPC Grade Bm, Multimode OM3 (G50), Simplex 3.0mm, Eca (LSZH), 3m (R804266)

This reference connector is characterized by a highly precise fiber centricity of G = 1.00µm maximum. This means that an optimum measuring precision is ensured, giving you andyour customers maximum reliability for each-to-each values of the measured connections.

Артикул: R804266 Категорія: Misc

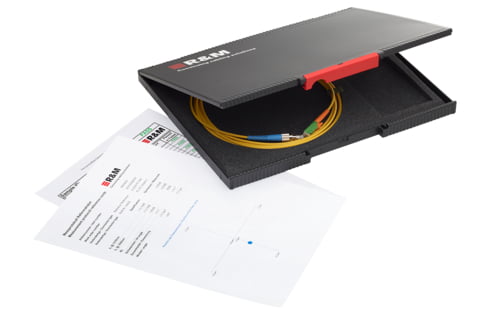

Scope of supply

Reference cord, 3 m
Test protocol, incl. IL and RL at 850nm + 1300nm, fiber position
Interferometry test protocol
Box, black

Mechanical Data

Color	turquoise/aqua
Cable length	3 m

Technical Data

Patch cord type	simplex
Conductor type FO	semi-tight buffer, dry
Fiber type	Multimode (MM)
Fiber class	OM3
Fiber diameter	G50 / 125 µm
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Reference cord
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen flame retardant
Cable overall diameter	Ø 3.0 mm (±0.15)
Connector type (A)	LC
Connector type (B)	FC
Connector color (A)	blue
Connector color (B)	metallic
Lever- / frame-coding (A)	Color
Lever color (A)	orange
Polishing plug (A)	PC
Polishing plug (B)	PC
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Return loss grade RL (A)	2
Return loss grade RL (B)	3
Attenuation grade IL (A)	R
Attenuation grade IL (B)	Bm
Connector class	connector
Standard	FC connector acc. to IEC 61754-4 LC connector acc. to IEC 61754-20 and ISO/IEC 14763-3
