Reference cable FO, SC-Simplex PC/UPC Grade R - SC-Simplex APC 8° Grade B, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 3m (R804247)

Reference cable FO, SC-Simplex PC/UPC Grade R - SC-Simplex APC 8° Grade  B, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 3m (R804247)

Reference cable FO, SC-Simplex PC/UPC Grade R - SC-Simplex APC 8° Grade B, Singlemode OS2 G.652.D, Simplex 3.0mm, Eca (LSZH), 3m (R804247)

This reference connector is characterized by a highly precise fiber centricity of G = 0.30µm maximum. To guarantee worst-case measurement, the fibers are turned downward at anangle of ±30°. This means that an optimum measuring precision is ensured, giving you and your customers maximum reliability for each-to-each values of the measured connections.

Артикул: R804247 Категорія:

Scope of supply

  • Reference cord, 3 m

  • Test protocol, incl. IL and RL at 1310nm + 1550nm, fiber position

  • Interferometry test protocol

  • Box, black

Mechanical Data

Cable length

3 m

Technical Data

Patch cord type

simplex

Conductor type FO

semi-tight buffer, gel-filled

Fiber type

Singlemode (SM)

Fiber class

G.657.A1 (covers G.652.D, OS1, OS2)

Fiber diameter

n.a.

Number of connectors (A)

1

Number of connectors (B)

1

Cable type

Reference cord

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

flame retardant

zero-halogen

Cable overall diameter

Ø 3.0 mm (±0.15)

Connector type (A)

SC

Connector type (B)

SC

Connector color (A)

blue

Connector color (B)

green

Polishing plug (A)

PC

Polishing plug (B)

APC 8°

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Return loss grade RL (A)

2

Return loss grade RL (B)

1

Attenuation grade IL (A)

R

Attenuation grade IL (B)

B

Connector class

connector

Standard

SC connector acc. to IEC 61754-4

reference connector acc. to ISO/IEC 14763-3

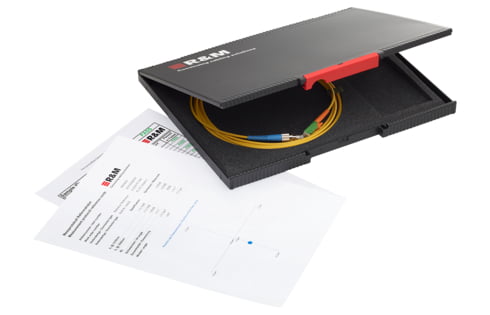

Plastic box, black, test protocol containing fiber position, IL and RL at 1310nm + 1550nm and interferometry test protocol.
The box contains a reference cable with a LSZH jacket, Ø 3.0 mm, yellow, singlemode G.652.D/G.657.A1 9/125 µm (OS1, OS2), length 3.0 m.
One side fitted with SC connector in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with a PC polished endface geometry, reference connector in acc. with ISO/IEC 14763-3 and qualified in acc. with IEC 61753-1, in category U (uncontrolled environment). Blue connector housing (singlemode), orange strain relief, material TPE / UL 94 V-0 and white plastic dust cover.
Optical specifications:
Fibers G = 0.30 µm, positioned in the lower area, 30° eccentric to the ferrule axis
Insertion loss (IL) Grade R for 100% of all tested specimen: = 0.15 dB
Return loss (RL) Grade 2: = 50 dB (typical= 55 dB)
Mechanical specifications:
Mating cycles: Delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N and one side fitted with SC connector in acc. with IEC 61754-4. Zirconia (ceramic) ferrule with an angled polish APC 8° endface geometry, connector tuned in accordance with IEC 61755-3-2 and qualified in acc. with IEC 61753-1 for category U (uncontrolledenvironment). Green connector housing (singlemode), material PBT / UL 94 V-0, green strain relief, material TPE / UL 94 V-0 and plastic dust cover. Optical specifications (random mated): Performance acc. to IEC 61753-1 (Table A.12): Insertion loss (IL) Grade B for 97% of the tested specimen: = 0.25 dB / typical = 0.12 dB Return loss (RL) Grade 1: = 65 dB (typical = 85 dB) Mechanical specifications: Mating cycles: delta IL < 0.2 dB after 500 mating cycles Pull-out force patch cord: = 100 N
