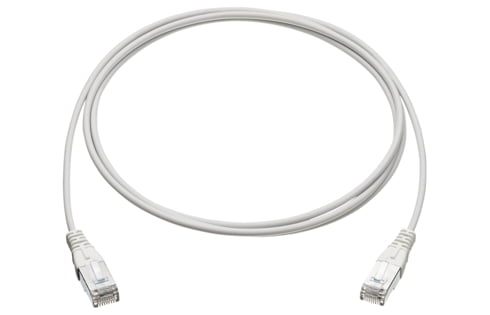

The shielded Cat. 6A R&MbasicLine thin Patch Cord is ideal for data center and where a high density of cables is required due to limited space. It allows almost for a doubling of the cable amount in a given cable management system.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | Fulfills Cat. 6A ISO, Class EA (500 MHz) performance requirements Complies with Category 6A ISO requirements of the standard EN 50173-1 TIA/EIA 568.2-D Fulfills Cat.6A requirements according to IEC 60603-7-51 Fulfilled the standard IEC 61935-2 |
| Protection class IP | IP 20 |
| PoE Level | 1 and 2 |
| Connector class | connector |
| Shielding connector (A) | shielded |
| Connector type (A) | RJ45 |
| Category connector (A) | Cat. 6A ISO |
| Shielding connector (B) | shielded |
| Connector type (B) | RJ45 |
| Category connector (B) | Cat. 6A ISO |
| Cable type | Patch cord |
| Cable category | Cat. 6A ISO |
| Shielding | U/FTP |
| Jacket material | LSZH |
| Cable overall diameter | max. 4.7 mm |
| Conductor | AWG 30/7 |
| Number of wires | 8 |
| Stranding | 4 pairs |
| Wire type | stranded wire |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 3.0 m / 9 ft 10 in |
| Cable length / attenuation factor | 2 |
| Color Code RAL | 7035 Light gray |
Cable, flexible, U/FTP, 4 x 2 x AWG 30/7, LSZH, color gray (RAL7035). Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-1-2 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with RJ45 connector compliant with Cat. 6A component standard: IEC 60603-7-51 RJ45 category 6A (500 MHz), shielded. Strain-relief function in acc. with TIA 568-B.1-1.
For the setting up of transmission channels of Class EA with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1). Fulfills Category 6A performance requirements, EN 50173-1 as well as TIA/EIA 568.2-D, interoperable and backwards compatible with Category 6 and Category 5e. Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz.
