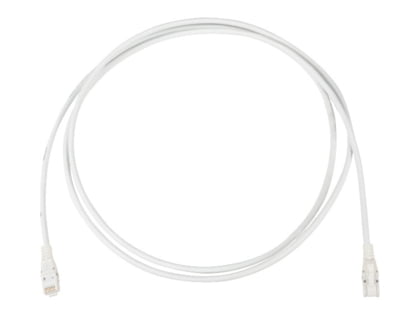

R&MhealthLine Patch Cord Cat. 6, U/UTP, 4P, LSZH, white, RJ45/u-RJ45/u, 3m (R825750)

R&MhealthLine Patch Cord Cat. 6, U/UTP, 4P, LSZH, white, RJ45/u-RJ45/u, 3m (R825750)

R&MhealthLine Patch Cord Cat. 6, U/UTP, 4P, LSZH, white, RJ45/u-RJ45/u, 3m (R825750)

The shielded Cat. 6 R&M
healthLinePatch Cord reduces the risk of spreading bacterias and germs as a result of touching the patch cord.

Cable identification: U/UTP

Outer jacket: LSZH

Conductor diameter copperstrand: AWG 26/7

Screened in pairs: No

Overall screen: No

Outer diameter: max. 5.5 mm

Antibacterial: Yes

Артикул: R825750 Категорія:
Mechanical Data

Color Code RAL

9010 Pure white

Cable length

3 m

Technical Data

Wire type

stranded wire

Number of wires

8

Cable type

Patch cord

Category

Cat. 6

Jacket material

LSZH, antibacterial equipped

Stranding

4 pairs

Wire diameter

AWG 26/7

Shielding

U/UTP

Cable overall diameter

5.5 mm

Category connector (A)

Cat. 6

Category connector (B)

Cat. 6

Connector type (A)

RJ45

Shielding connector (A)

unshielded

Shielding connector (B)

unshielded

PoE

Yes

Connector class

connector

Wiring diagram

TIA-568A

Standard

Compliant with Cat. 6 component standard IEC 60603-7-4

Compliant with Cat. 6 Class E (250 MHz) requirements: ISO/IEC 11801

Compliant with Cat. 6 component standard IEC 60603-7-5

Fulfilled the standard IEC 61935-2

Antibacterial according to ISO 22196

Antibacterial cable, flexible, U/UTP, 4 x 2 x AWG 26/7, LSZH, color white (RAL 9010). Low-smoke in acc. with IEC 61034 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with antibacterial RJ45 connector compliant with Cat. 6 component standard. Key standard: IEC 60603-7 RJ45 category 6; IEC 60603-7-1 to 5. Strain-relief function in acc. with TIA 568-C.

Complies with requirements of Cat. 6 for the establishing of transmission links of class E in acc. with ISO/IEC 11801 ed. 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1).

Antibacterial characteristics according to ISO 22196.
