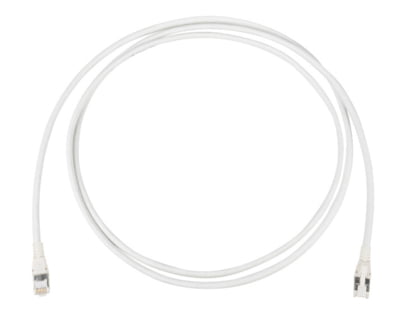

The shielded Cat. 6
A
R&M
healthLinePatch Cord reduces the risk of spreading bacterias and germs as a result of touching the patch cord.
Cable identification: S/FTP
Outer jacket: LSFRZH
Conductor diameter copper strand: AWG 26/7
Screened in pairs: AL/foil
Overall screen: Copper braid
Outer diameter: max. 6.2 mm
Antibacterial: Yes
Antibacterial cable, flexible, S/FTP, 4 x 2 x AWG 26/7, LSFRZH, color white (RAL9010). Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-3C and halogen-freein acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.
Mounted on both sides with antibacterial RJ45 connector compliant with Cat. 6
A
ISO component standard:IEC 60603-7-51 RJ45 category 6
AISO (500 MHz), shielded. Strain-relief function in acc. with TIA 568-C.
For the setting up of transmission channels of Class E
A
with up to 4 plugged connections acc. to ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1, May 2011 (DIN EN 50173-1). Complies with Category 6
AISO requirements of the standards ISO/IEC 11801 ed. 2.2, June 2011, EN 50173-1 May 2011, as well as TIA 568-C.2, interoperable and backwards compatible with Category 6 and Category 5e. Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz.
Antibacterial characteristics according to ISO 22196.
