R&MinteliPhy Analyzer 19" 1U with power supply 70W (R837015)

Name: R&MinteliPhy Analyzer 19" 1U with power supply 70W (R837015) - ДП "Сінергія"
SKU: R837015

R&MinteliPhy Analyzer 19" 1U with power supply 70W (R837015)

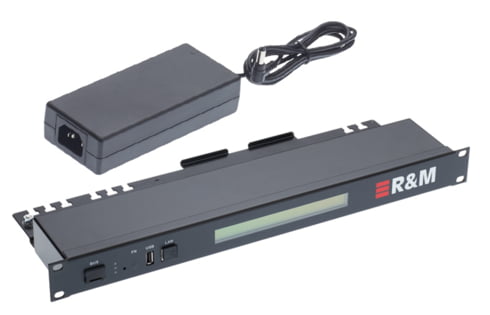

Analyzer to be mounted in 19" network cabinets. Features LCD display and Ethernet interface. Controls up to 42 sensorbars or netscale panel control units.

Артикул: R837015 Категорія: Misc

Scope of supply

19" 1U Analyzer
3 Analyzers / bus termination connectors
2bus terminations
Power supply 70W incl. connection cable Schuko / C13
Installation instructions

Environmental Characteristics

Operation temperature	0 °C to +40 °C / +32 °F to +104 °F
Environment	WEEE, ROHS, REACH
Vibration and shock	Stationary and non-stationary vibration, including shock
Vibration and shock standard	IEC 60721-3-3 Class 3M1

Mechanical Data

Dimensions	485.0 mm x 44.45 mm x 171.0 mm / 19.094 in x 1.75 in x 6.732 in (W x H x D)
Color Code RAL	9005 Jet black
Material	Sheet metal
Cable length	25 m
Weight (Kg)	2.7

Technical Data

User interfaces	3 x LED, Backlit LCD display 2 x 40 characters, 1 x function button, 1 x reset button
EMC	2004 / 108 / EC
