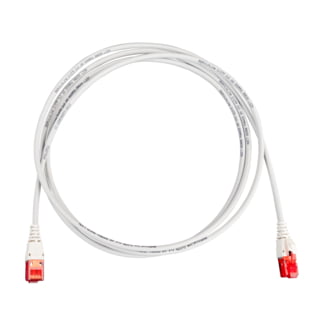

R&MthinLine Patch Cord Cat. 6A, U/UTP, 4P, LSZH, gray, RJ45/u- RJ45/u, 5m (R861034)

R&MthinLine Patch Cord Cat. 6A, U/UTP, 4P, LSZH, gray, RJ45/u- RJ45/u, 5m (R861034)

R&MthinLine Patch Cord Cat. 6A, U/UTP, 4P, LSZH, gray, RJ45/u- RJ45/u, 5m (R861034)

The unshielded Cat. 6A R&M
thinLinePatch Cord is ideal for data center and where a high density of cables is required due to limited space. It allows almost for a doubling of the cable amount in a given cable management system.

Артикул: R861034 Категорія:
Mechanical Data

Color Code RAL

7035 Light gray

Cable length

1 m

Technical Data

Wire type

stranded wire

Conductor Construction

AWG 30/7

Number of wires

8

Cable type

Patch cord

Jacket material

LSZH

Stranding

4 pairs

Shielding

ANEXT suppression foil

Cable overall diameter

max. 4.7 mm

Category connector (A)

Cat. 6A ISO

Category connector (B)

Cat. 6A ISO

Connector type (A)

RJ45

Shielding connector (A)

unshielded

Shielding connector (B)

unshielded

PoE Level

4

Connector class

connector

Wiring diagram

TIA-568A

Standard

Complies with Category 6A ISO requirements of the standard EN 50173-1

Fulfills Cat. 6A ISO, Class EA (500 MHz) performance requirements

Complies with Category 6A ISO requirements of the standard TIA/EIA 568.2-D

Fulfills Cat.6A requirements according to IEC 60603-7-51

Fulfilled the standard IEC 61935-2

Cable, flexible, U/UTP, 4 x 2 x AWG 30/7, LSZH,color gray (RAL7035). Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-1-2 and halogen-free in acc. with IEC 60754-1. Halogen-free and heavy-metal free in acc. with EU directives RoHS 2.

Mounted on both sides with RJ45 connector compliant with Cat. 6A component standard: IEC 60603-7-51 RJ45 category 6A (500 MHz), unshielded. Strain-relief function in acc. with TIA/EIA 568.2-D.

For the setting up of transmission channels of Class EA with up to 4 plugged connections acc. to ISO/IEC 11801, EN 50173-1, (DIN EN 50173-1). Fulfills Category 6A performance requirements, EN 50173-1, as well as TIA/EIA 568.2-D, interoperable and backwards compatible with Category 6 and Category 5e. Suitable for 10GBASE-T applications in acc. with IEEE 802.3™ Section Four up to 500 MHz.

Prod
