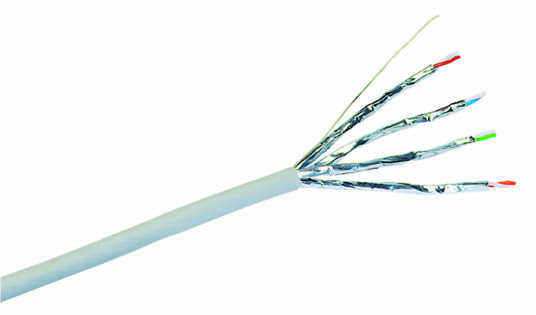

Siamese Cable Cat. 7, F/FTP, 2x4P, 650 MHz, LSZH,grey, Eca, 500 m (R509856)

Name: Siamese Cable Cat. 7, F/FTP, 2x4P, 650 MHz, LSZH,grey, Eca, 500 m (R509856) - ДП "Сінергія"
SKU: R509856

Siamese Cable Cat. 7, F/FTP, 2x4P, 650 MHz, LSZH,grey, Eca, 500 m (R509856)

Cat. 7, F/FTP cable. Foil shielding of pairs. 100 Ohm impedance. Data transmission frequencies of up to 650 MHz.

Артикул: R509856 Категорія: Installation Cables

Mechanical Data

Color Code RAL	7035 Light gray
Cable length	500 m

Technical Data

Wire type	Wire
Number of wires	16
Cable type	Siamese cable
Cable design	normal
Category	Cat. 7
Jacket material	LSZH
Cable jacket characteristics	zero-halogen
Stranding	2 x 4 pairs
Wire diameter	AWG 23
Shielding	F/FTP
Cable overall diameter	Ø 7.3 /15.0 mm
Max. test frequency	650
PoE	Yes
PoE Level	4
CPR classification	Eca
Standard	IEC 61156-5 ISO/IEC 11801 EN 50173-1 EN 50288-x-1 IEC 60332-1-2 IEC 60754-2 CPR fire class: EN50575 IEC 61034
Armour	No protection

Pair-shielded 100 Ohm installation cable, suitable for transmission frequencies of up to 650 MHz, 2 cables 4 x 2 (AWG 23). Compliant with standards ISO/IEC 11801 ed. 2.2, EN 50173-1: May 2011 (DIN EN 50173-1), IEC 61156-5 2nd Ed., EN 50288 x-1, 10GBASE-T in acc. with IEEE 802.3™ Section Four, tested and certified by independent laboratory. Low-smoke in acc. with IEC 61034, flame-retardant in acc. with IEC 60332-1 and halogen-free in acc. with IEC 60754-2. Outer jacket color gray, RAL 7035.
