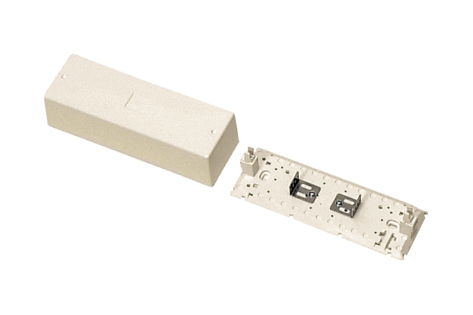

SM Housing 10 pairs (R302914)

SM Housing 10 pairs (R302914)

SM Housing 10 pairs (R302914)

Cannot be equipped with protection components.

Артикул: R302914 Категорія:

Scope of supply

  • Bottom part

  • Top part 60 x 50 x 180 mm (WxDxH)

  • 2 mounting profiles 15 x 20 mm

  • 2 screws KA40 x 8 mm

  • 2 washers

  • Duo-adhesive label T+T/neutral 60 x 25 mm

  • 2 cable ties, small

  • Installation instructions

Mechanical Data

Dimensions

180.0 mm x 60.0 mm x 50.0 mm / 7.087 in x 2.362 in x 1.969 in (W x H x D)

Color Code RAL

9010 Pure white

Material

plastic: ABS

Technical Data

Number of pairs

Max. 10 DA

Application area

surface-mounting (SM)&(FM)

Grid size

20 mm / 0.8 in

Distributor housing type

housing

VS system

VS Compact
