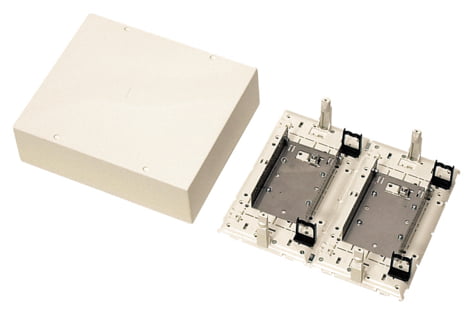

SM Housing 100 pairs (R302917)

SM Housing 100 pairs (R302917)

Can be equipped with protection components.

Артикул: R302917 Категорія:

Scope of supply

  • 2 bottom parts incl. connecting pieces

  • Top part 220 x 80 x 260 mm (WxDxH)

  • 2 back mount frame each 6 modules 10 pair

  • 2 clamping brackets M4

  • 2 screws M4 x 6 mm

  • 4 serrated lock washers M4

  • 4 screws KA40 x 8 mm

  • 4 washers

  • 4 patching rings, small

  • Duo-adhesive label T+T/neutral 60 x 25 mm

  • 4 cable ties, small

  • Installation instructions

Mechanical Data

Dimensions

260.0 mm x 220.0 mm x 80.0 mm / 10.236 in x 8.661 in x 3.15 in (W x H x D)

Color Code RAL

9010 Pure white

Material

plastic: ABS

Technical Data

Number of pairs

Max. 100 DA

Application area

surface-mounting (SM)&(FM)

Distributor housing type

housing

VS system

VS Compact
