Splice closure complete without accessories like shrink tubes, silicagel, etc.
Grounding
Valve
Wall and pole fastenings
DESCRIPTION | VALUE/VALUE RANGE |
---|---|
Protection class IP | IP 68 |
Distributor housing type | splice closure |
VS system | connector (conductor) |
Closure with valve | Yes |
Closure with grounding | Yes |
Closure with wall / pole holder | Yes |
DESCRIPTION | VALUE/VALUE RANGE |
---|---|
Dimensions | 125.0 mm x 332.0 mm / 4.921 in x 13.071 in (W x H) |
Color Code RAL | 9005 Jet black |
Material | plastic: HD-PE |

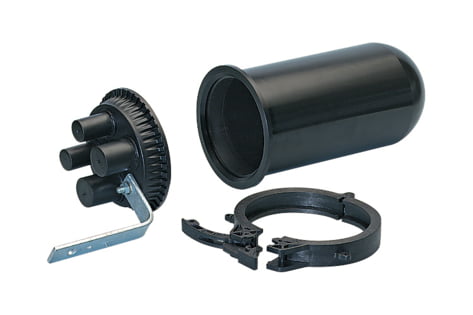

Universal splice closure copper 4 x Ø15 mm / 2 x Ø22 mm, type DC, as dome-end closure for the distribution of copper pairs with double end connector, featuring a mechanical locking system, cable entry through end cap tube in shrinking technology, repeated opening does not wear off the sealing material, the locking system offers sealing and locking option, continuous ground connection, valve for leak testing. Closure body and flange are made of HD polyethylene, and the turnlock fastener of fiberglass-reinforced PE, resistant to alkaline earths, salt water, fungal and putrefaction bacteria, strain relief ring and splice tray holder are made of stainless steel. The splice closure can be used in ambient temperatures of -20 to +60° Celsius and water depths of 6 meters (IP68). The splice closure's capacity is determined by cables used and the number of cable entries.
Type | Image | Description | Product No. | |
---|---|---|---|---|
Optional accessories |
Desiccant (silica gel), 2x 60g | R30392 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Shrink Tube Kit, Ø31/8x150 | R307321 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Shrink Tube Kit, Ø41/12x150 | R307322 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Shrink Tube Kit, Ø50/18x150 | R308560 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Shield Connection Cable V-shape / Ø 6 mm, 400 mm | R303002 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Shield Connection Cable V-shape / V-shape, 500 mm | R303003 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Grounding Kit for Steel-Armored Cables Ø 22-6 mm | R308561 | ADD TO WISH LISTREMOVE FROM WISH LIST | |
Optional accessories |
Grounding Kit for Steel-Armored Cables Ø 32-10 mm | R308562 | ADD TO WISH LISTREMOVE FROM WISH LIST |
