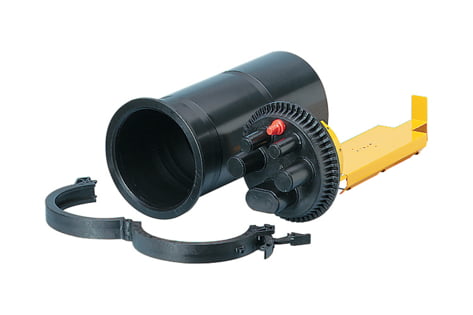

Splice Closure FL, 144 splices, Ø180x443, 1xoval 4xØ20 (R313156)

Splice Closure FL, 144 splices, Ø180x443, 1xoval 4xØ20 (R313156)

Splice Closure FL, 144 splices, Ø180x443, 1xoval 4xØ20 (R313156)

Артикул: R313156 Категорія:

Scope of supply

  • Complete splice closure, excluding splice trays

Mechanical Data

Diameter

Ø 180 x 443 mm (1xoval, 4xØ20)

Color Code RAL

9005 Jet black

Material

plastic: HD-PE

Technical Data

Fiber Count

144

Closure with grounding

Yes

Closure with valve

Yes

Closure with wall / pole holder

No

Distributor housing type

splice closure

Lockable

Yes

FO dome-end closure for max. 144 splice connections, featuring a mechanical locking system, suitable for cable-to-cable splicing with fiber branching and fiber-in-the-loop applications (uncut cables), individual strain relief for each cable, splice tray with loose tubes storage, repeated opening does not wear off the sealing material, the locking system offers sealing and locking option, continuous ground connection, valve for leak testing. Closure body and flange are made of HD polyethylene, and the turnlock fastener of fiberglass-reinforced PE, resistant to alkaline earths, salt water, fungal and putrefaction bacteria, strain relief ring and splice tray holder are made of stainless steel. The splice closure can be used in ambient temperatures of -20 to +60° Celsius and water depths of 6 meters (IP68). The closure can be equipped with either 12 splice trays R30 or 6 splice trays R40.
