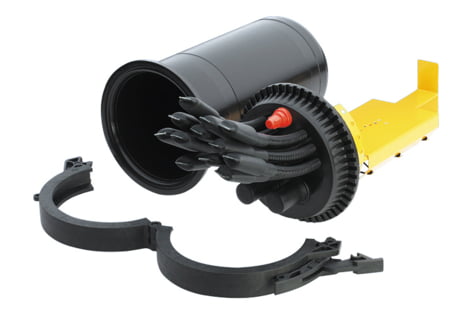

Splice Closure FTTx, 144 splices, Ø180x443, 1xØ32 1xØ20 24xFØ10 (R314308)
Splice Closure FTTx, 144 splices, Ø180x443, 1xØ32 1xØ20 24xFØ10 (R314308)
Scope of Supply
-
Complete splice closure excluding splice trays
-
Aluminum foils and sealing material
-
Installation instructions
Technical Data
| DESCRIPTION |
VALUE/VALUE RANGE |
| Protection class IP |
IP 68
|
| Distributor housing type |
splice closure
|
| Lockable |
Yes |
| Closure with valve |
Yes |
| Closure with grounding |
Yes |
| Closure with wall / pole holder |
No |
| Fiber Count |
144 |
Mechanical Data
| DESCRIPTION |
VALUE/VALUE RANGE |
| Diameter |
Ø 180 x 443 mm (1xØ32, 1xØ20, 24xFØ10) |
| Color Code RAL |
9005 Jet black
|
| Material |
plastic: HD-PE
|
Install instructions
Technical drawing(s)
Data sheet
| Type |
Image |
Description |
Product No. |
|
| Optional accessories |
|
Desiccant (silica gel), 2x 60g
|
R30392
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Strain Relief Kit, Splice Closures
|
R307029
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Shrink Tube Kit, Ø31/8x150
|
R307321
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Shrink Tube Kit, Ø41/12x150
|
R307322
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Transport Kit, 144 splice connections
|
R307320
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Wall and Pole Mounting Kit, Closures Ø 180
|
R307317
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Shield Connection Cable V-shape / Ø 6 mm, 400 mm
|
R303002
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Shield Connection Cable V-shape / V-shape, 500 mm
|
R303003
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Grounding Kit for Steel-Armored Cables Ø 22-6 mm
|
R308561
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Grounding Kit for Steel-Armored Cables Ø 32-10 mm
|
R308562
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Splice Tray Basic Set R30, white
|
R30393
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Splice Tray Additional Set R30, white
|
R30394
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Splice Tray Basic Set R40
|
R308445
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
| Optional accessories |
|
Splice Tray Additional Set R40
|
R308444
|
ADD TO WISH LISTREMOVE FROM WISH LIST |
