Name: Splice Closure SCM, 1152 splices, 1xoval 10xfix (R509568) - ДП "Сінергія"
SKU: R509568

Splice Closure SCM, 1152 splices, 1xoval 10xfix (R509568)

Ideal for backbone installations.

Артикул: R509568 Категорія: Misc

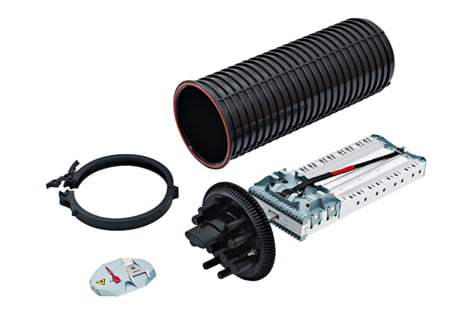

Scope of Supply

Splice closure with fixed cable entries, without splice tray
Holder modules (accommodates max. 96 SC or 48 SE trays)
Cover
Loose tube tray
Labeling clips 1–120
Desiccant (silica gel)
Installation instructions

Technical Data

DESCRIPTION	VALUE/VALUE RANGE
Protection class IP	IP 68
Distributor housing type	splice closure
Lockable	Yes
Closure with valve	Yes
Closure with grounding	Yes
Closure with wall / pole holder	No
Version	splice
Fiber Count	1152

Mechanical Data

DESCRIPTION	VALUE/VALUE RANGE
Diameter	Ø 330 x 828 mm (1xoval, 2xØ25, 2xØ23, 2xØ20, 4xØ15)
Color Code RAL	9005 Jet black
Material	plastic: HD-PE

Type	Description	Product No.
Optional accessories	Desiccant (silica gel), 2x 20g	R509376	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Cable Entry Kit SCM, Backbone loop	R509172	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Cable Entry Kit SCM, Ø28/6x150, 1x cable hoder	R508327	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Cable Entry Kit SCM, Ø31/8x150, 1x cable hoder	R508326	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Cable Entry Kit SCM, Ø41/12x150, 1x cable hoder	R508325	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Cable Entry Kit Oval SCM, Ø75/23x150, 2x cable hoder	R508321	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Shrink Tube Kit, Ø28/6x150	R509342	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Shrink Tube Kit, Ø31/8x150	R307321	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Shrink Tube Kit, Ø41/12x150	R307322	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Shrink Tube Kit Oval, Ø75/23x150	R307323	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Wall and Pole Mounting Kit, Closures Ø 250 mm	R508354	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Wall Mounting Holder, closures Ø 250 mm	R509392	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Loose Tube Tray Kit SCM	R509186	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SC, 6-fibers, 1x	R508434	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SC, 6-fibers, 12x	R508440	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SC heat shrink, 12-fibers, 1x	R804270	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SC heat shrink, 12-fibers, 12x	R804272	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SC ANT, 12-fibers, 1x	R804271	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SC ANT, 12-fibers, 12x	R804273	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SE heat shrink, 24-fibers, 1x	R508436	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SE heat shrink, 24-fibers, 6x	R508441	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SE ANT, 24-fibers, 1x	R508438	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splice Tray SCM, SE ANT, 24-fibers, 6x	R508442	ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories	Splitter Tray SCM, SE, 1x	R508439	ADD TO WISH LISTREMOVE FROM WISH LIST
