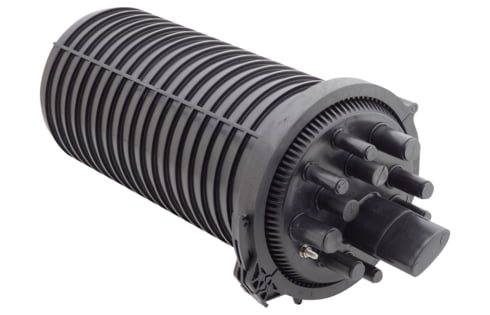

Splice Closure SCM, 576 splices, 1xoval 10xfix (R509553)

Splice Closure SCM, 576 splices, 1xoval 10xfix (R509553)

Ideal for backbone installations.

Артикул: R509553 Категорія:

Scope of Supply

  • Splice closure with fixed cable entries, without splice tray

  • Holder modules (accommodates max. 48 SC or 24 SE trays)

  • Cover

  • Loose tube tray

  • Labeling clips 1–120

  • Desiccant (silica gel)

  • Installation instructions

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Protection class IP

IP 68

Distributor housing type

splice closure

Lockable Yes
Closure with valve Yes
Closure with grounding Yes
Closure with wall / pole holder No
Version

splice

Fiber Count 576

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Diameter Ø 330 x 672 mm (1xoval, 2xØ25, 2xØ23, 2xØ20, 4xØ15)
Color Code RAL

9005 Jet black

Material

plastic: HD-PE

Type Image Description Product No.
Optional accessories

Desiccant (silica gel), 2x 20g
R509376 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Cable Entry Kit SCM, Backbone loop
R509172 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Cable Entry Kit SCM, Ø28/6x150, 1x cable hoder
R508327 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Cable Entry Kit SCM, Ø31/8x150, 1x cable hoder
R508326 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Cable Entry Kit SCM, Ø41/12x150, 1x cable hoder
R508325 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Cable Entry Kit Oval SCM, Ø75/23x150, 2x cable hoder
R508321 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Shrink Tube Kit, Ø28/6x150
R509342 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Shrink Tube Kit, Ø31/8x150
R307321 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Shrink Tube Kit, Ø41/12x150
R307322 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Shrink Tube Kit Oval, Ø75/23x150
R307323 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Wall and Pole Mounting Kit, Closures Ø 250 mm
R508354 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Wall Mounting Holder, closures Ø 250 mm
R509392 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Loose Tube Tray Kit SCM
R509186 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SC, 6-fibers, 1x
R508434 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SC, 6-fibers, 12x
R508440 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SC heat shrink, 12-fibers, 1x
R804270 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SC heat shrink, 12-fibers, 12x
R804272 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SC ANT, 12-fibers, 1x
R804271 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SC ANT, 12-fibers, 12x
R804273 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SE heat shrink, 24-fibers, 1x
R508436 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SE heat shrink, 24-fibers, 6x
R508441 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SE ANT, 24-fibers, 1x
R508438 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splice Tray SCM, SE ANT, 24-fibers, 6x
R508442 ADD TO WISH LISTREMOVE FROM WISH LIST
Optional accessories

Splitter Tray SCM, SE, 1x
R508439 ADD TO WISH LISTREMOVE FROM WISH LIST
