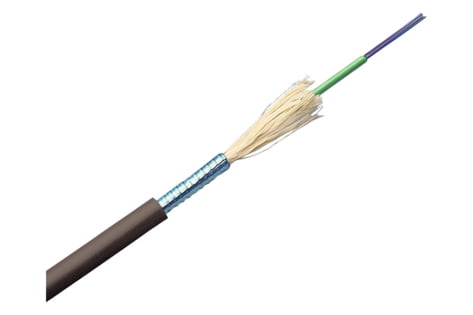

The solution for installations directly in the ground in difficult environments. The cable features an inner and an outer PE sheath. The cavities between the stranded gel-filled loose tubes are filled with gel, also ensuring water tightness. Underneath the outer sheath the cable is surrounded by an 0.155 mm corrugated steel armor (ECCS).
Sheath: PE, black.
Fiber: multimode (MM) G50/125.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 60794-1-2 E4 IEC 60794-1-2 E7 IEC 60794-1-2 E10 IEC 60794-1-22 F5B ISO/IEC 11801:2002 |
| Jacket material |
PE |
| CPR classification | Fca |
| Cable jacket characteristics |
Cable, water-tight |
| Armour |
Steel-armored |
| Cable design |
A-DF(ZN)2YW2Y |
| Fiber type |
multimode (MM) |
| Fiber class |
OM2 |
| Conductor type |
loose tube, gel-filled |
| Fiber diameter |
G50 / 125 µm |
| Standard put-up length on drum | 2100 m ± 5% |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color |
black |
