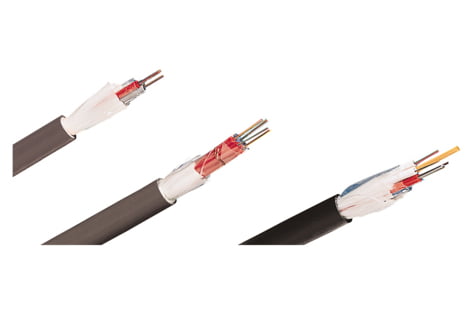

Stranded Loose Tube Cable A-DQ(ZN)B2Y, G.652.D, Eca, 1x12-fibers (R314542)

Stranded Loose Tube Cable A-DQ(ZN)B2Y, G.652.D, Eca, 1x12-fibers (R314542)

The solution for high fiber-count campus links requiring higher mechanical properties. The stranded gel-filled loose tubes are encased by a blocking swelling tape and reinforced glass yarns for water tightness and rodent protection.

Sheath: PE, black.

Fiber: singlemode (SM) E9/125.

Артикул: R314542

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Standard / norm

IEC 60794-1-2 E11

IEC 60794-1-2 E3

IEC 60794-1-2 F1

IEC 60332-1

IEC 60332-3C

IEC 61034

IEC 60754-2

ISO/IEC 11801:2002

Jacket material

PE

CPR classification Fca
Cable jacket characteristics

Cable, water-tight

Armour

Rodent protection

Cable overall diameter 11.0 mm
Cable design

A-DQ(ZN)B2Y

Stranding

1 x 12 pairs

Fiber type

singlemode (SM)

Fiber class

G.652.D + G.657.A1 (OS1, OS2)

Fiber Count 12
Conductor type

loose tube, gel-filled

Fiber diameter

E9 / 125 µm

Standard put-up length on drum 2100 m ± 5%

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Cable length 2000.0 m / 6562 ft
Color

black
