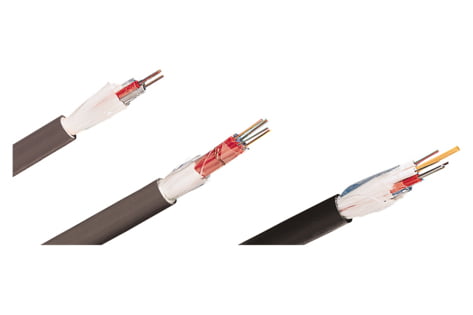

The solution for high fiber-count campus links requiring higher mechanical properties. The stranded gel-filled loose tubes are encased by a blocking swelling tape and reinforced glass yarns for water tightness and rodent protection.
Sheath: PE, black.
Fiber: multimode (MM) G50/125.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
IEC 60794-1-2 E1 IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 60794-1-2 E4 IEC 60794-1-2 E7 IEC 60794-1-2 E10 IEC 60794-1-22 F5B |
| Jacket material |
PE |
| CPR classification | Fca |
| Cable jacket characteristics |
Cable, water-tight |
| Armour |
Rodent protection |
| Cable overall diameter | 11.0 mm |
| Cable design |
A-DQ(ZN)B2Y |
| Stranding |
1 x 12 pairs |
| Fiber type |
multimode (MM) |
| Fiber class |
OM2 |
| Fiber Count | 12 |
| Conductor type |
loose tube, gel-filled |
| Fiber diameter |
G50 / 125 µm |
| Standard put-up length on drum | 2100 m ± 5% |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color |
black |
