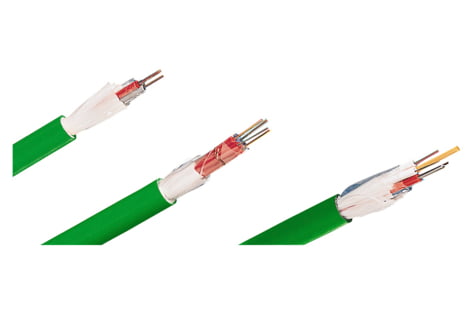

The solution for high fiber-count links within buildings. The cable's compact construction of stranded gel-filled loose tubes, the blocking swelling tape for water tightness, and most of all its excellent mechanical properties make it the perfect choice.
Sheath: LSZH, green
Fiber: multimode (MM) G50/125
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm | IEC 60794-1-2 E11 IEC 60794-1-2 E3 IEC 60794-1-2 F1 IEC 60332-1 IEC 60332-3C IEC 61034 IEC 60754-2 ISO/IEC 11801:2002 |
| Jacket material | LSZH |
| CPR classification | Eca |
| Cable jacket characteristics | Cable, water-tight Cable, metal-free Zero-halogen |
| Armour | Rodent protection |
| Cable overall diameter | 11.0 mm |
| Cable design | U-DQ(ZN)BH |
| Stranding | 1 x 12 pairs |
| Fiber type | multimode (MM) |
| Fiber class | OM3 |
| Fiber Count | 12 |
| Conductor type | loose tube, gel-filled |
| Fiber diameter | G50 / 125 µm |
| Standard put-up length on drum | 2100 m ± 5% |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 2000.0 m / 6562 ft |
| Color | green |
