| Operation temperature |
-40 °C to +70 °C / -40 °F to +158 °F |
| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling |
-40 °C +70 °C / -40 °F +158 °F |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Transport / store temperature |
40 °C to +70 °C / +104 °F to +158 °F |
| Crush resistance - short term |
1000 N/100mm |
| Expected lifetime |
min. 30 years |
| Tensile performance - during installation |
600 N |
| Tensile performance - during installation acceptance criteria |
Δα ≤ 0,05 dB after test |
| Tensile Performance during Installation TestMethod |
IEC 60794-1-21:E1 |
| Repeated bending acceptance criteria |
no damage |
| Kink |
d=40 x cable diameter |
| Kink acceptance criteria |
no damage |
| Repeated bending |
R=40 x cable diameter, 25 cycles |
| Cable bend - acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Kink test method |
IEC 60794-1-21:E10 |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion acceptance criteria |
no damage |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Torsion test method |
IEC 60794-1-21:E7 |
| Impact resistance |
5 Nm, 3 impacts, d=20 mm, R=300 mm |
| Cable weight |
30.0 kg/km / 20 lbs/1000ft |
| Fiber color coding |
1 .. 12 green, yellow, white, blue, red, violet, brown, pink, black, gray, orange, acqua |
| Fiber type |
OM4 |

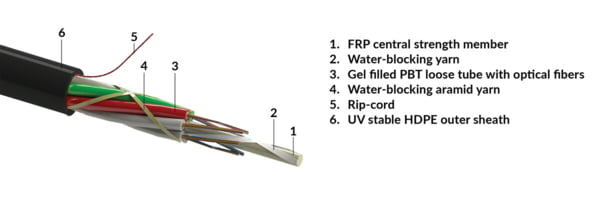

| Cable type |
Stranded loose tube cable |
| Jacket material |
UV stable HDPE |
| Fiber Count |
12 |
| CPR classification |
Fca |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Sheath marking |
Ink-Jet, white |
| FRP/coat. CSM nominal thickness [mm] |
1.7 |
| Cable version |
Micro cable |
| Application |
outdoor use |
| Loose tube diameter [mm] |
1.55 |
