| Operation temperature | -40 °C to +70 °C / -40 °F to +158 °F |
| Temperature cycling acceptance criteria | Δα ≤ 0,05 dB |
| Temperature cycling | -40 °C +70 °C / -40 °F +158 °F |
| Temperature cycling test method | IEC 60794-1-22:F1 |
| Transport / store temperature | -40 °C to +70 °C / -40 °F to +158 °F |
| Crush resistance - short term | 5000 N/100mm |
| Expected lifetime | min. 30 years |
| Tensile performance - during installation | 2500 N |
| Tensile performance - during installation acceptance criteria | Δα ≤ 0,05 dB after test |
| Tensile Performance during Installation TestMethod | IEC 60794-1-21:E1 |
| Repeated bending acceptance criteria | no damage |
| Repeated bending test method | IEC 60794-1-21:E6 |
| Repeated bending | R=20 x cable diameter, 25 cycles |
| Cable bend - acceptance criteria | Δα ≤ 0,05 dB after test, no damage |
| Torsion | L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion acceptance criteria | no damage |
| Impact resistance acceptance criteria | Δα ≤ 0,05 dB after test, no damage |
| Torsion test method | IEC 60794-1-21:E7 |
| Impact resistance | 25 Nm, 3 impacts, d=20 mm, R=300 mm |
| Crush resistance - long term acceptance criteria | Δα ≤ 0,05 dB prior release, no damage |
| Tensile performance - in service acceptance criteria | Δα ≤ 0,05 dB |
| Tensile performance - in service test method | IEC 60794-1-21:E1 |
| Tensile performance - in service | 800 N |
| Cable weight | 145.0 kg/km / 97 lbs/1000ft |
| Fiber type | G.652.D |

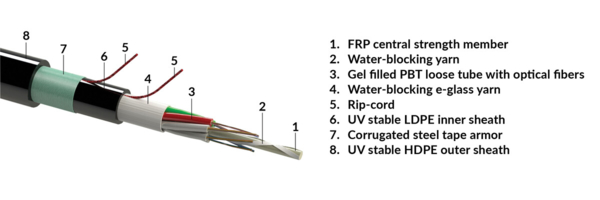

| Cable type | Stranded loose tube cable |
| Cable design | Double jacket |
| Jacket material | UV stable HDPE |
| Fiber Count | 36 |
| Inner jacket nominal thickness [mm] | 0.9000000000 mm |
| CPR classification | Fca |
| Armour | Corrugated steel tape armoured (CSTA) |
| Fiber color coding | 1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Sheath marking | Ink-Jet, white |
| Standard put-up length on drum | 4100 m ± 5% |
| FRP/coat. CSM nominal thickness [mm] | 1.7 |
| Cable version | n.a. |
| Application | outdoor use |
| Loose tube diameter [mm] | 1.7 |
