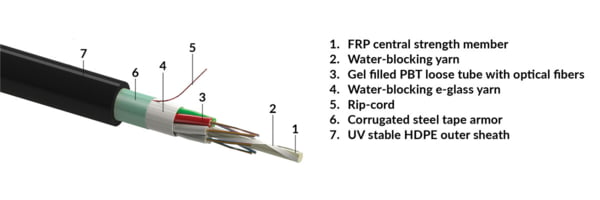

Stranded loose tube cable, outdoor-use, CSTA-steel tape armour, HDPE sheath - black, 03x12-fibers OM3 (R857093)

Stranded loose tube cable, outdoor-use, CSTA-steel tape armour, HDPE sheath - black, 03x12-fibers OM3 (R857093)

Stranded loose tube cable, outdoor-use, CSTA-steel tape armour, HDPE sheath - black, 03x12-fibers OM3 (R857093)

Артикул: R857093 Категорія:
Environmental Characteristics

Operation temperature

-40 °C to +70 °C / -40 °F to +158 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-40 °C +70 °C / -40 °F +158 °F

Temperature cycling test method

IEC 60794-1-22:F1

Transport / store temperature

-40 °C to +70 °C / -40 °F to +158 °F

Mechanical Data

Crush resistance - short term

5000 N/100mm

Expected lifetime

min. 30 years

Tensile performance - during installation

2500 N

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Repeated bending acceptance criteria

no damage

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending

R=20 x cable diameter, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L = 1 m, rotation angle ±180°, 10 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

IEC 60794-1-21:E7

Impact resistance

20 Nm, 3 impacts, d=20 mm, R=300 mm

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Tensile performance - in service acceptance criteria

Δα ≤ 0,05 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

800 N

Cable weight

115.0 kg/km / 77 lbs/1000ft

Technical Data

Fiber type

OM3

Cable type

Stranded loose tube cable

Jacket material

UV stable HDPE

Fiber Count

36

CPR classification

Fca

Armour

Corrugated steel tape armoured (CSTA)

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink

Sheath marking

Ink-Jet, white

Standard put-up length on drum

4100 m ± 5%

FRP/coat. CSM nominal thickness [mm]

1.7

Cable version

n.a.

Application

outdoor use

Loose tube diameter [mm]

1.7

Prod
