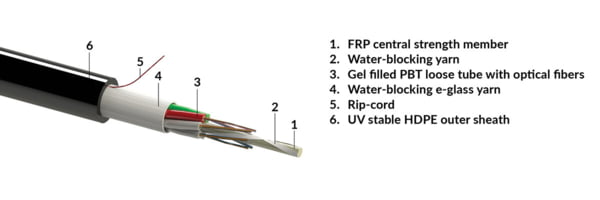

Stranded loose tube cable, outdoor-use, imp. rodent protection, HDPE sheath - black, 02x12-fibers OM3 (R856845)

Stranded loose tube cable, outdoor-use, imp. rodent protection, HDPE sheath - black, 02x12-fibers OM3 (R856845)

Stranded loose tube cable, outdoor-use, imp. rodent protection, HDPE sheath - black, 02x12-fibers OM3 (R856845)

Артикул: R856845 Категорія:
Environmental Characteristics

Operation temperature

-40 °C to +70 °C / -40 °F to +158 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-40 °C +70 °C / -40 °F +158 °F

Temperature cycling test method

IEC 60794-1-22:F1

Transport / store temperature

-40 °C to +70 °C / -40 °F to +158 °F

Mechanical Data

Crush resistance - short term

2000 N/100mm

Expected lifetime

min. 30 years

Tensile performance - during installation

3500 N

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Repeated bending acceptance criteria

no damage

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending

R=20 x cable diameter, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L = 1 m, rotation angle ±180°, 10 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

IEC 60794-1-21:E7

Impact resistance

10 Nm, 3 impacts, d=20 mm, R=300 mm

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Tensile performance - in service acceptance criteria

Δα ≤ 0,05 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

1100 N

Cable weight

100.0 kg/km / 67 lbs/1000ft

Fiber color coding

1 .. 12 green, yellow, white, blue, red, violet, brown, pink, black, gray, orange, acqua

Technical Data

Fiber type

OM3

Cable type

Stranded loose tube cable

Jacket material

UV stable HDPE

Fiber Count

24

CPR classification

Fca

Armour

Intensified rodent protection

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink

Sheath marking

Ink-Jet, white

FRP/coat. CSM nominal thickness [mm]

2.5

Cable version

n.a.

Application

outdoor use

Loose tube diameter [mm]

2.3

Prod
