Name: Stranded loose tube cable, outdoor-use, imp. rodent protection, HDPE sheath - black, 12x24-fibers OM4 (R856903) - ДП "Сінергія"
SKU: R856903

Environmental Characteristics

Operation temperature	-40 °C to +70 °C / -40 °F to +158 °F
Temperature cycling acceptance criteria	Δα ≤ 0,05 dB
Temperature cycling	-40 °C +70 °C / -40 °F +158 °F
Temperature cycling test method	IEC 60794-1-22:F1
Transport / store temperature	-40 °C to 70 °C / -40 °F to +158 °F

Mechanical Data

Crush resistance - short term	2000 N/100mm
Expected lifetime	min. 30 years
Tensile performance - during installation	5000 N
Tensile performance - during installation acceptance criteria	Δα ≤ 0,05 dB after test
Tensile Performance during Installation TestMethod	IEC 60794-1-21:E1
Repeated bending acceptance criteria	no damage
Repeated bending test method	IEC 60794-1-21:E6
Repeated bending	R=20 x cable diameter, 25 cycles
Cable bend - acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion	L = 1 m, rotation angle ±180°, 10 cycles
Torsion acceptance criteria	no damage
Impact resistance acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion test method	IEC 60794-1-21:E7
Impact resistance	10 Nm, 3 impacts, d=20 mm, R=300 mm
Crush resistance - long term acceptance criteria	Δα ≤ 0,05 dB prior release, no damage
Tensile performance - in service acceptance criteria	Δα ≤ 0,05 dB
Tensile performance - in service test method	IEC 60794-1-21:E1
Tensile performance - in service	1500 N
Cable weight	190.0 kg/km / 127 lbs/1000ft

Technical Data

Fiber type	OM4

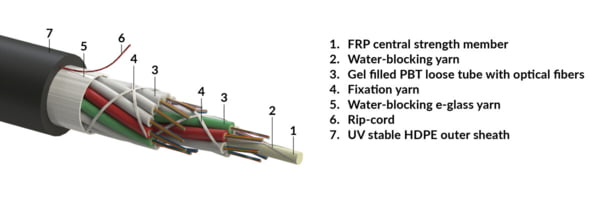

Cable type	Stranded loose tube cable
Jacket material	UV stable HDPE
Fiber Count	288
CPR classification	Fca
Armour	Intensified rodent protection
Fiber color coding	1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink13.-24.: red, green, blue, yellow, white, grey, brown, violet, turquoise, natural, orange, pink(ring-marked)
Sheath marking	Ink-Jet, white
FRP/coat. CSM nominal thickness [mm]	2.8 / 6.7
Cable version	n.a.
Application	outdoor use
Loose tube diameter [mm]	2.3
