Stranded loose tube cable, outdoor-use, no armour, HDPE sheath - black, 02x12-fibers G652.D (R856193)

Stranded loose tube cable, outdoor-use, no armour, HDPE sheath - black, 02x12-fibers G652.D (R856193)

Артикул: R856193
Environmental Characteristics

Operation temperature

-40 °C to +70 °C / -40 °F to +158 °F

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling

-40 °C +70 °C / -40 °F +158 °F

Temperature cycling test method

IEC 60794-1-22:F1

Transport / store temperature

-40 °C to +70 °C / -40 °F to +158 °F

Mechanical Data

Crush resistance - short term

2000 N/100mm

Expected lifetime

min. 30 years

Tensile performance - during installation

2000 N

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Repeated bending acceptance criteria

no damage

Repeated bending test method

IEC 60794-1-21:E6

Repeated bending

R=20 x cable diameter, 25 cycles

Cable bend - acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion

L = 1 m, rotation angle ±180°, 10 cycles

Torsion acceptance criteria

no damage

Impact resistance acceptance criteria

Δα ≤ 0,05 dB after test, no damage

Torsion test method

IEC 60794-1-21:E7

Impact resistance

10 Nm, 3 impacts, d=20 mm, R=300 mm

Crush resistance - long term acceptance criteria

Δα ≤ 0,05 dB prior release, no damage

Tensile performance - in service acceptance criteria

Δα ≤ 0,05 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

800 N

Cable weight

55.0 kg/km / 37 lbs/1000ft

Fiber color coding

1 .. 12 green, yellow, white, blue, red, violet, brown, pink, black, gray, orange, acqua

Technical Data

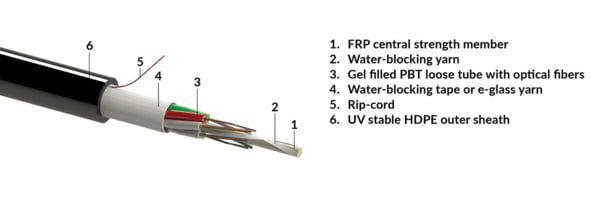

Cable type

Stranded loose tube cable

Jacket material

UV stable HDPE

Fiber Count

24

CPR classification

Fca

Armour

Rodent protection

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink

Sheath marking

Ink-Jet, white

FRP/coat. CSM nominal thickness [mm]

1.7

Cable version

n.a.

Application

outdoor use

Loose tube diameter [mm]

1.7
