| Temperature cycling acceptance criteria |
Δα ≤ 0,05 dB |
| Temperature cycling test method |
IEC 60794-1-22:F1 |
| Expected lifetime |
min. 30 years |
| Tensile performance - during installation |
3500 N |
| Tensile performance - during installation acceptance criteria |
Δα ≤ 0,05 dB after test |
| Tensile Performance during Installation TestMethod |
IEC 60794-1-21:E1 |
| Tensile performance - in service acceptance criteria |
Δα ≤ 0,05 dB |
| Tensile performance - in service test method |
IEC 60794-1-21:E1 |
| Tensile performance - in service |
1100 N |
| Cable weight |
120.0 kg/km / 80 lbs/1000ft |
| Fiber type |
G.652.D |

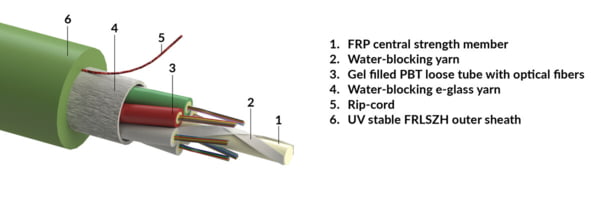

| Cable type |
Stranded loose tube cable |
| Jacket material |
UV stable FRLSZH |
| Fiber Count |
36 |
| CPR classification |
Eca |
| Armour |
Intensified rodent protection |
| Flammability - vertical cable bundle test method |
EN 60332-3-22 (cat. A) |
| Halogen free, acid gases |
Pass |
| Halogen free, Acid gases test method |
EN 60754-2 |
| Fiber color coding |
1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Sheath marking |
Ink-Jet, black |
| Smoke density |
Pass |
| Smoke density test method |
EN 61034-1, EN 61034-2 |
| FRP/coat. CSM nominal thickness [mm] |
2.5 |
| Cable version |
n.a. |
| Application |
universal use |
| Loose tube diameter [mm] |
2.3 |
