Temperature cycling acceptance criteria | Δα ≤ 0,05 dB |
Temperature cycling test method | IEC 60794-1-22:F1 |
Expected lifetime | min. 30 years |
Tensile performance - during installation | 3500 N |
Tensile performance - during installation acceptance criteria | Δα ≤ 0,05 dB after test |
Tensile Performance during Installation TestMethod | IEC 60794-1-21:E1 |
Tensile performance - in service acceptance criteria | Δα ≤ 0,05 dB |
Tensile performance - in service test method | IEC 60794-1-21:E1 |
Tensile performance - in service | 1100 N |
Cable weight | 120.0 kg/km / 80 lbs/1000ft |
Fiber type | G.657.A1 |

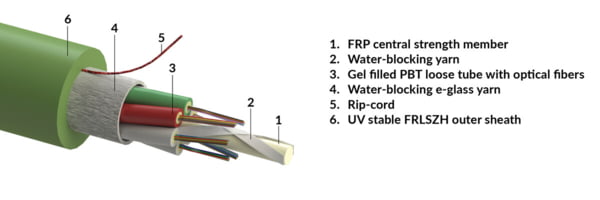

Cable type | Stranded loose tube cable |
Jacket material | UV stable FRLSZH |
Fiber Count | 36 |
CPR classification | Eca |
Armour | Intensified rodent protection |
Flammability - vertical cable bundle test method | EN 60332-3-22 (cat. A) |
Halogen free, acid gases | Pass |
Halogen free, Acid gases test method | EN 60754-2 |
Fiber color coding | 1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
Sheath marking | Ink-Jet, black |
Smoke density | Pass |
Smoke density test method | EN 61034-1, EN 61034-2 |
FRP/coat. CSM nominal thickness [mm] | 2.5 |
Cable version | n.a. |
Application | universal use |
Loose tube diameter [mm] | 2.3 |
