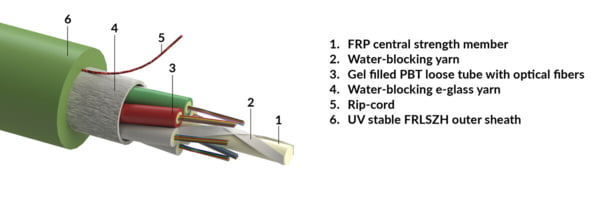

Stranded loose tube cable, universal-use, imp. rodent protection, FRLSZH sheath - green, Eca, 04x12-fibers OM4 (R856966)

Stranded loose tube cable, universal-use, imp. rodent protection, FRLSZH sheath - green, Eca, 04x12-fibers OM4 (R856966)

Stranded loose tube cable, universal-use, imp. rodent protection, FRLSZH sheath - green, Eca, 04x12-fibers OM4 (R856966)

Артикул: R856966 Категорія:
Environmental Characteristics

Temperature cycling acceptance criteria

Δα ≤ 0,05 dB

Temperature cycling test method

IEC 60794-1-22:F1

Mechanical Data

Expected lifetime

min. 30 years

Tensile performance - during installation

3500 N

Tensile performance - during installation acceptance criteria

Δα ≤ 0,05 dB after test

Tensile Performance during Installation TestMethod

IEC 60794-1-21:E1

Tensile performance - in service acceptance criteria

Δα ≤ 0,05 dB

Tensile performance - in service test method

IEC 60794-1-21:E1

Tensile performance - in service

1100 N

Cable weight

120.0 kg/km / 80 lbs/1000ft

Technical Data

Fiber type

OM4

Cable type

Stranded loose tube cable

Jacket material

UV stable FRLSZH

Fiber Count

48

CPR classification

Eca

Armour

Intensified rodent protection

Flammability - vertical cable bundle test method

EN 60332-3-22 (cat. A)

Halogen free, acid gases

Pass

Halogen free, Acid gases test method

EN 60754-2

Fiber color coding

1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink

Sheath marking

Ink-Jet, black

Smoke density

Pass

Smoke density test method

EN 61034-1, EN 61034-2

FRP/coat. CSM nominal thickness [mm]

2.5

Cable version

n.a.

Application

universal use

Loose tube diameter [mm]

2.3

Prod
