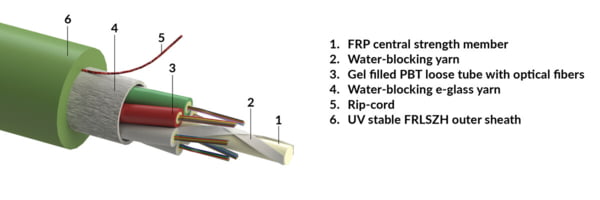

Improved rodent-protected, non-metallic stranded loose tube cable with up to 72 fibers in a 6-strand stranding, for indoor or outdoor duct installation.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable type |
Stranded loose tube cable |
| Jacket material |
UV stable FRLSZH |
| CPR classification | Eca |
| Armour |
Intensified rodent protection |
| Application |
universal-use |
| Cable family code | UT6x2,3GF |
| DIN/VDE Code | U-DQ(BN)H wbg nx2,3 |
| DoP no.: | D9057 |
| Loose tube nominal diameter [mm] | 2.3 mm |
| Loose-tube colour coding |
1.red, 2.green - on each layer, rest of tubes white (fillers uncoloured or black) |
| FRP/coat. CSM nominal thickness [mm] | 2.5 |
| Outer jacket nominal thickness [mm] | 1.4 mm |
| Cable outer diameter [mm] | 11 mm |
| Cable version |
n.a |
| Standard put-up length on drum | 2100 m ± 5% |
| Halogen free, acid gases |
Pass |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable weight | 120.0 kg/km / 80 lbs/1000ft |
| Tensile performance - in service |
1100 N |
| Tensile performance - in service test method |
IEC 60794-1-21:E1 |
| Tensile performance - in service acceptance criteria |
Δα ≤ 0,05 dB |
| Tensile performance - during installation |
3500 N |
| Tensile Performance during Installation TestMethod |
IEC 60794-1-21:E1 |
| Tensile performance - during installation acceptance criteria |
Δα ≤ 0,05 dB after test |
| Crush resistance - long term |
1000 N/100mm |
| Crush resistance - long term test method |
IEC 60794-1-21:E3A |
| Crush resistance - long term acceptance criteria |
Δα ≤ 0,05 dB prior release, no damage |
| Impact resistance |
10 Nm, 3 impacts, d=20 mm, R=300 mm |
| Impact resistance test method |
IEC 60794-1-21:E4 |
| Impact resistance acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Torsion |
L = 1 m, rotation angle ±180°, 10 cycles |
| Torsion test method |
IEC 60794-1-21:E7 |
| Torsion acceptance criteria |
no damage |
| Cable bend |
d=20 x cable diameter, 4 turns, 3 cycles |
| Cable bend - test method |
EN 60794-1-21:E11A |
| Cable bend - acceptance criteria |
Δα ≤ 0,05 dB after test, no damage |
| Repeated bending |
R=20 x cable diameter, 25 cycles |
| Repeated bending test method |
IEC 60794-1-21:E6 |
| Repeated bending acceptance criteria |
no damage |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Temperature cycling | -40 °C +70 °C / -40 °F +158 °F |
| Installation temperature | -5 °C +50 °C / +23 °F +122 °F |
| Operation temperature | -40 °C to +70 °C / -40 °F to +158 °F |
| Transport / store temperature | -40 °C to 70 °C / -40 °F to +158 °F |
