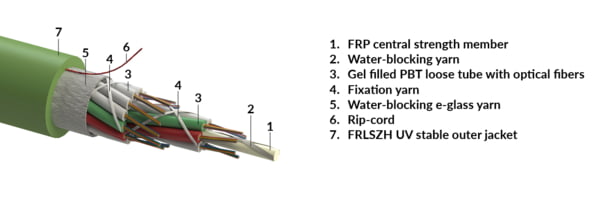

Name: Stranded loose tube cable, universal-use, no armour, FRLSZH sheath - green, Eca, 18x24-fibers G657.A1 (R856599) - ДП "Сінергія"
SKU: R856599

Environmental Characteristics

Operation temperature	-40 °C to +70 °C / -40 °F to +158 °F
Temperature cycling acceptance criteria	Δα ≤ 0,05 dB
Temperature cycling	-40 °C +70 °C / -40 °F +158 °F
Temperature cycling test method	IEC 60794-1-22:F1
Transport / store temperature	-40 °C to +70 °C / -40 °F to +158 °F

Mechanical Data

Crush resistance - short term	2000 N/100mm
Expected lifetime	min. 30 years
Tensile performance - during installation	3000 N
Tensile performance - during installation acceptance criteria	Δα ≤ 0,05 dB after test
Tensile Performance during Installation TestMethod	IEC 60794-1-21:E1
Repeated bending acceptance criteria	no damage
Repeated bending test method	IEC 60794-1-21:E6
Repeated bending	R=20 x cable diameter, 25 cycles
Cable bend - acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion	L = 1 m, rotation angle ±180°, 10 cycles
Torsion acceptance criteria	no damage
Impact resistance acceptance criteria	Δα ≤ 0,05 dB after test, no damage
Torsion test method	IEC 60794-1-21:E7
Impact resistance	10 Nm, 3 impacts, d=20 mm, R=300 mm
Crush resistance - long term acceptance criteria	Δα ≤ 0,05 dB prior release, no damage
Tensile performance - in service acceptance criteria	Δα ≤ 0,05 dB
Tensile performance - in service test method	IEC 60794-1-21:E1
Tensile performance - in service	1000 N

Technical Data

Fiber type	G.657.A1
Cable type	Stranded loose tube cable
Jacket material	UV stable FRLSZH
Fiber Count	432
CPR classification	Eca
Armour	Rodent protection
Flammability - vertical cable bundle test method	EN 60332-3-22 (cat. A)
Halogen free, acid gases	Pass
Halogen free, Acid gases test method	EN 60754-2
Fiber color coding	1.-12.: red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink13.-24.: red, green, blue, yellow, white, grey, brown, violet, turquoise, natural, orange, pink(ring-marked)
Sheath marking	Ink-Jet, black
Smoke density	Pass
Smoke density test method	EN 61034-1, EN 61034-2
FRP/coat. CSM nominal thickness [mm]	2.5
Cable version	n.a.
Application	universal use
Loose tube diameter [mm]	2.3
