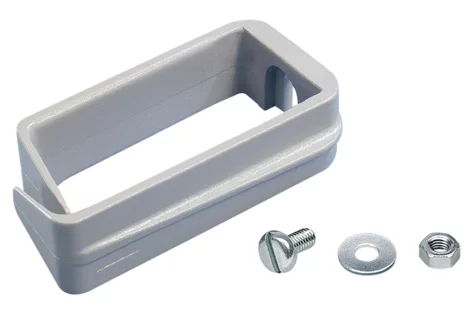

Transfer Ring Plastic, on the side (R20031)

Transfer Ring Plastic, on the side (R20031)

For neat jumper wire laying. Fastened with screws to the side of back mount frames.

Material: plastic, PC.

Артикул: R20031

Scope of Supply

  • Transfer ring

  • Screw M6 x 12

  • Washer

  • Nut M6

Technical Data

DESCRIPTION VALUE/VALUE RANGE
Protection class IP

IP 20

Mechanical Data

DESCRIPTION VALUE/VALUE RANGE
Dimensions 80.0 mm x 48.0 mm x 19.0 mm / 3.15 in x 1.89 in x 0.748 in (W x H x D)
Color Code RAL

7035 Light gray

Material

plastic: PC, fiber-glass reinforced

Technical drawing(s)
