Cable assyembly FO, MPO-QR Male with 12 fibers Grade C APC 8° Without - MPO-QR Male with 12 fibers, Grade CAPC 8°, Without, 12xSinglemode OS2 G.657.A2, Yellow ECA (LSZH), 10m (R875772)

Name: Cable assyembly FO, MPO-QR Male with 12 fibers Grade C APC 8° Without - MPO-QR Male with 12 fibers, Grade CAPC 8°, Without, 12xSinglemode OS2 G.657.A2, Yellow ECA (LSZH), 10m (R875772) - ДП "Сінергія"
SKU: R875772

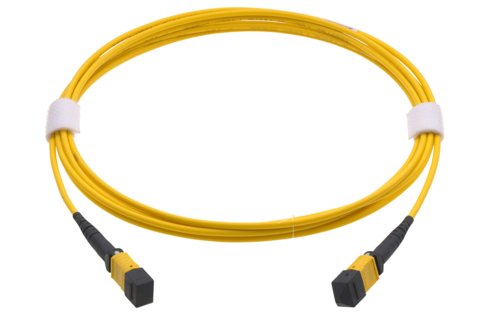

Cable assyembly FO, MPO-QR Male with 12 fibers Grade C APC 8° Without - MPO-QR Male with 12 fibers, Grade CAPC 8°, Without, 12xSinglemode OS2 G.657.A2, Yellow ECA (LSZH), 10m (R875772)

Both sides fitted with MPO-QR12-male APC connector.

Polarity: Type A

Connector color: black.

Frame color: yellow.

Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).

Cable: yellow.

Артикул: R875772 Категорія: Misc

Environmental Characteristics

Operation temperature	15 °C to 55 °C / +59 °F to +131 °F
Transport / store temperature	20 °C to 60 °C / +68 °F to +140 °F

Mechanical Data

Color	yellow
Cable length	10 m

Technical Data

Fiber type	Singlemode (SM)
Fiber class	G.657.A1 (covers G.652.D, OS1, OS2)
Fiber diameter	n.a.
Number of connectors (A)	1
Number of connectors (B)	1
Cable type	Trunk cable
Cable design	normal
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen
Connector type (A)	MPO-QR male
Connector type (B)	MPO-QR male
Fiber Count	12
Connector color (A)	black
Connector color (B)	black
Color (B1)	yellow
Lever- / frame-coding (A)	Color
Lever- / frame-coding (B)	Color
Polishing plug (A)	APC 8°
Polishing plug (B)	APC 8°
Protection class IP (A)	IP 20
Protection class IP (B)	IP 20
Attenuation grade IL (A)	0.3dB
Attenuation grade IL (B)	0.3dB
Connector class	quick-release connector
Wiring diagram	type A
Standard	ANSI/TIA-568.2 MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
