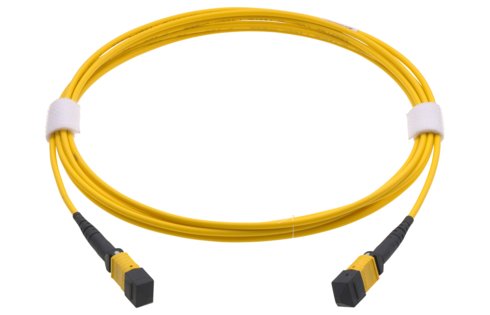

Both sides fitted with MTP12-male APC connector.
Connector color: black.
Frame color: yellow.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Cable: yellow.
DESCRIPTION | VALUE/VALUE RANGE |
---|---|
Standard / norm |
Geometrical specifications of MPO/MTP connectors acc. to IEC 61754-7 |
Protection class IP |
IP 20 |
Connector class |
connector |
Protection class IP (A) |
IP 20 |
Number of connectors (A) | 1 |
Protection class IP (B) |
IP 20 |
Number of connectors (B) | 1 |
Wiring diagram |
type A |
Cable type |
Trunk cable |
Jacket material |
LSZH |
Cable jacket characteristics |
Cable, metal-free Zero-halogen |
Connector type (A) |
MTP12-male |
Polishing plug (A) |
APC 8° |
Attenuation grade IL (A) | D |
Return loss grade RL (A) | 3 |
Connector color (A) |
black |
Lever- / frame-coding (A) |
Color |
Color (A1) |
yellow |
Connector type (B) |
MTP12-male |
Polishing plug (B) |
APC 8° |
Attenuation grade IL (B) | D |
Return loss grade RL (B) | 3 |
Connector color (B) |
black |
Lever- / frame-coding (B) |
Color |
Color (B1) |
yellow |
Fiber type |
singlemode (SM) |
Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
Fiber Count | 12 |
Fiber diameter |
E9 / 125 µm |
DESCRIPTION | VALUE/VALUE RANGE |
---|---|
Cable length | 30.0 m / 98 ft |
Color |
yellow |
