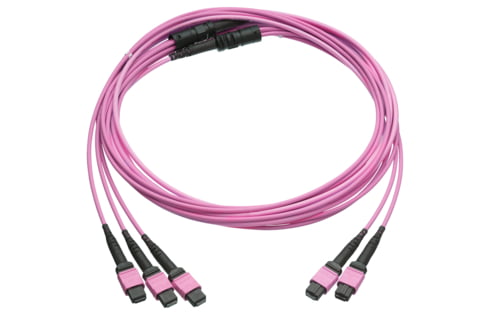

Cable assyembly FO, MPO-QR Male with 12 fibers Grade C PC/UPC 0.8m (Venus FXXL, FXL, FLA2) -MPO-QR Male with 12 fibers, Grade CPC/UPC, 0.8m (Venus FXXL, FXL, FLA2), 24xMultimode OM4 (G50), Heather violet ECA (LSZH), 10m (R877178)

Cable assyembly FO, MPO-QR Male with 12 fibers Grade C PC/UPC 0.8m (Venus FXXL, FXL, FLA2) -MPO-QR Male with 12 fibers, Grade CPC/UPC, 0.8m (Venus FXXL, FXL, FLA2), 24xMultimode OM4 (G50), Heather violet ECA (LSZH), 10m (R877178)

Артикул: R877178 Категорія:
Environmental Characteristics

Operation temperature

15 °C to 55 °C / +59 °F to +131 °F

Transport / store temperature

20 °C to 60 °C / +68 °F to +140 °F

Mechanical Data

Color

heather violet

Cable length

10 m

Technical Data

Fiber type

Multimode OM4

Fiber class

OM4

Fiber diameter

G50 / 125 µm

Number of connectors (A)

2

Number of connectors (B)

2

Cable type

Trunk cable

Cable design

normal

Jacket material

LSFH

Cable jacket characteristics

Cable, metal-free

zero-halogen

Connector type (A)

MPO-QR male

Connector type (B)

MPO-QR male

Fiber Count

24

Connector color (A)

black

Connector color (B)

black

Color (B1)

heather violet

Lever- / frame-coding (A)

Color

Lever- / frame-coding (B)

Color

Polishing plug (A)

PC

Polishing plug (B)

PC

Protection class IP (A)

IP 20

Protection class IP (B)

IP 20

Attenuation grade IL (A)

0.3dB

Attenuation grade IL (B)

0.3dB

Connector class

quick-release connector

Wiring diagram

type A

Standard

ANSI/TIA-568.2

MPO connectors acc. to IEC 61754-7-1 (MPO connector family - one fiber row)
