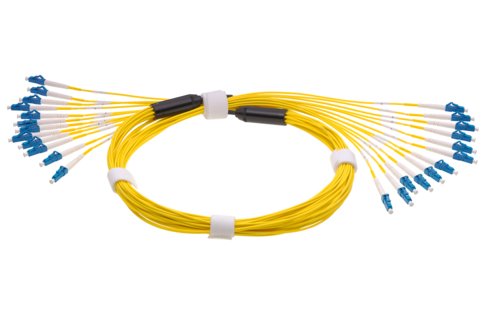

Pre-converted MiniCore cable with LC PC connectors on both sides.
Leg length: 80 cm (on both sides).
Connector color: blue.
Fiber: SM E9/125 G.652.D/G.657.A1 (OS1, OS2).
Outer jacket: LSZH.
Cable: yellow.
Test report, pulling eye on both sides.
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Standard / norm |
Geometrical specifications: LC connector acc. to IEC 61754-20 |
| Protection class IP |
IP 20 |
| Connector class |
connector |
| Protection class IP (A) |
IP 20 |
| Number of connectors (A) | 24 |
| Protection class IP (B) |
IP 20 |
| Number of connectors (B) | 24 |
| Cable type |
Trunk cable |
| Jacket material |
LSZH |
| Cable jacket characteristics |
Cable, metal-free Zero-halogen Flame-retardant |
| Cable overall diameter | Ø 6 mm |
| Connector type (A) |
LC |
| Polishing plug (A) |
PC |
| Attenuation grade IL (A) | C |
| Return loss grade RL (A) | 2 |
| Connector color (A) |
blue |
| Connector type (B) |
LC |
| Polishing plug (B) |
PC |
| Attenuation grade IL (B) | C |
| Return loss grade RL (B) | 2 |
| Connector color (B) |
blue |
| Fiber type |
singlemode (SM) |
| Fiber class |
G.652.D + G.657.A1 (OS1, OS2) |
| Fiber Count | 24 |
| Conductor type |
semi-tight buffer, dry |
| Fiber diameter |
E9 / 125 µm |
| DESCRIPTION | VALUE/VALUE RANGE |
|---|---|
| Cable length | 30.0 m / 98 ft |
| Color |
yellow |
