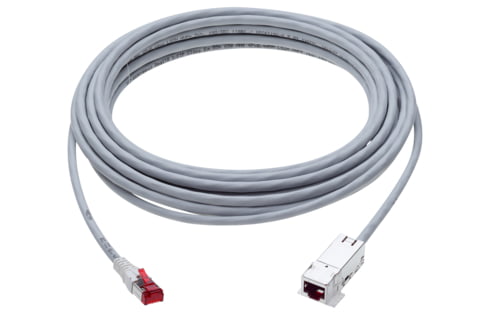

Trunk cable CU CP, Cat. 6a ISO, AWG26, Dca, Plug RJ45 Cat. 6a ISO/s, - Modul RJ45 Cat. 6a ISO/s, 7.5 (R803900)

Trunk cable CU CP, Cat. 6a ISO, AWG26, Dca, Plug RJ45 Cat. 6a ISO/s, - Modul RJ45 Cat. 6a ISO/s, 7.5 (R803900)

RJ45/s connector + Cat. 6A ISO connection module.

Cable identification: S/FTP

Outer jacket: LSZH

Conductor diameter copper strand: AWG 26/1

Screened in pairs: AL/polyester foil

Overall screen: copper braid

Outer diameter: 6 mm

Артикул: R803900 Категорія:
Mechanical Data

Color Code RAL

7032 Pebble gray

Cable length

7.5 m

Technical Data

Number of wires

8

Category

Cat. 6A ISO

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

zero-halogen

flame retardant

Stranding

1 x 4 pairs

Wire diameter

AWG 26

Shielding

S/FTP

Cable overall diameter

5.8 mm

Category connector (A)

Cat. 6A ISO

Category connector (B)

Cat. 6A ISO

Connector type (A)

RJ45

Shielding connector (A)

shielded

Shielding connector (B)

shielded

Max. test frequency

650

PoE

Yes

Standard

Compliant with Cat. 6A ISO, Class EA (500 MHz) requirements: ISO/IEC 11801

Complies with Category 6A ISO requirements of the standard ISO/IEC 11801

Complies with Category 6A ISO requirements of the standard EN 50173-1

Complies with Category 6A ISO requirements of the standard TIA/EIA 568.2-D

Compliant with Cat. 6A ISO component standards IEC 60603-7-51
