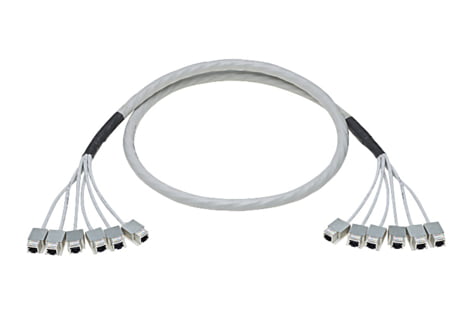

Trunk cable CU PL, Cat. 6 Real 10, 1x4P single cable, AWG26, Eca, Modul RJ45 Cat. 6 Real 10/s, -Modul RJ45 Cat. 6 Real 10/s, 7.5 (R803885)

Name: Trunk cable CU PL, Cat. 6 Real 10, 1x4P single cable, AWG26, Eca, Modul RJ45 Cat. 6 Real 10/s, -Modul RJ45 Cat. 6 Real 10/s, 7.5 (R803885) - ДП "Сінергія"
SKU: R803885

Trunk cable CU PL, Cat. 6 Real 10, 1x4P single cable, AWG26, Eca, Modul RJ45 Cat. 6 Real 10/s, -Modul RJ45 Cat. 6 Real 10/s, 7.5 (R803885)

Wiring diagram: TIA 568-A or B

Leg length: 20 cm

Cable identification: S/FTP

Outer jacket: LSZH

Conductor diameter: AWG 26/1 (solid wire)

Screened in pairs: AL/polyester foil

Overall screen: copper braid

Outer diameter: 19.2 mm

Customized Lengths up to 55 m

Customized Labeling on both ends

Артикул: R803885 Категорія: Misc

Mechanical Data

Color Code RAL	9001 Cream
Cable length	7.5 m

Technical Data

Number of wires	48
Cable type	Trunk cable
Category	Real10 Cat. 6
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free flame retardant zero-halogen
Stranding	6 x 4 pairs
Wire diameter	AWG 26
Shielding	S/FTP
Cable overall diameter	Ø 1 x 4P, 5.7 mm / 6 x 4P, 19.2 mm
Category connector (A)	Real10 Cat. 6
Category connector (B)	Real10 Cat. 6
Connector type (A)	RJ45
Shielding connector (A)	shielded
Shielding connector (B)	shielded
Max. test frequency	650
PoE	Yes
Standard	IEC 61156-6 ISO/IEC 11801 EN 50173-5 EN 50288-4-2
