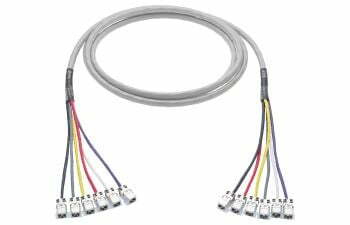

Trunk cable CU PL, Cat. 6a ISO, 24P multi cable thin compact, AWG26, Dca, Modul RJ45 Cat. 6a EL/s, -Modul RJ45 Cat. 6a EL/s, 7.5 (R823739)

Name: Trunk cable CU PL, Cat. 6a ISO, 24P multi cable thin compact, AWG26, Dca, Modul RJ45 Cat. 6a EL/s, -Modul RJ45 Cat. 6a EL/s, 7.5 (R823739) - ДП "Сінергія"
SKU: R823739

Trunk cable CU PL, Cat. 6a ISO, 24P multi cable thin compact, AWG26, Dca, Modul RJ45 Cat. 6a EL/s, -Modul RJ45 Cat. 6a EL/s, 7.5 (R823739)

Wiring diagram: TIA 568-A or B

Leg length: 20 cm

Cable identification: S/FTP, 24 pairs

Outer jacket: LSFRZH

Conductor diameter: AWG26/1 (solid wire)

Screened in pairs: AL/polyester foil

Overall screen: tin-plated copper braid

Outer diameter: 13.9 mm

Customized Lengths up to 55 m

Customized Labeling on both ends

Артикул: R823739 Категорія: Misc

Mechanical Data

Color Code RAL

7035 Light gray

Technical Data

Number of wires	48
Stranding	24 pairs
Wire diameter	AWG 26
Cable overall diameter	Ø 24P, 13.9 mm
Connector type (A)	RJ45
Max. test frequency	650
