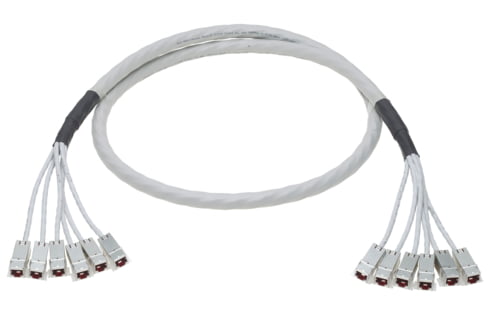

Trunk cable CU PL, Cat. 6a ISO, 6x4P single cable & jacket, AWG26, Eca, Modul RJ45 Cat. 6a ISO/s, -Modul RJ45 Cat. 6a ISO/s, 7.5 (R803887)

Name: Trunk cable CU PL, Cat. 6a ISO, 6x4P single cable & jacket, AWG26, Eca, Modul RJ45 Cat. 6a ISO/s, -Modul RJ45 Cat. 6a ISO/s, 7.5 (R803887) - ДП "Сінергія"
SKU: R803887

Trunk cable CU PL, Cat. 6a ISO, 6x4P single cable & jacket, AWG26, Eca, Modul RJ45 Cat. 6a ISO/s, -Modul RJ45 Cat. 6a ISO/s, 7.5 (R803887)

Wiring diagram: TIA 568-A or B

Leg length: 20 cm

Cable identification: S/FTP

Outer jacket: LSZH

Conductor diameter: AWG 26/1 (solid wire)

Screened in pairs: AL/polyester foil

Overall screen: copper braid

Outer diameter: 19.2 mm

Customized Lengths up to 55 m

Customized Labeling on both ends

Артикул: R803887 Категорія: Misc

Mechanical Data

Color Code RAL	9001 Cream
Cable length	7.5 m

Technical Data

Number of wires	48
Cable type	Trunk cable
Category	Cat. 6A ISO
Jacket material	LSZH
Cable jacket characteristics	Cable, metal-free zero-halogen flame retardant
Stranding	6 x 4 pairs
Wire diameter	AWG 26
Shielding	S/FTP
Cable overall diameter	Ø 1 x 4P, 5.7 mm / 6 x 4P, 19.2 mm
Category connector (A)	Cat. 6A ISO
Category connector (B)	Cat. 6A ISO
Connector type (A)	RJ45
Shielding connector (A)	shielded
Shielding connector (B)	shielded
Max. test frequency	650
PoE	Yes
Standard	IEC 61156-6 ISO/IEC 11801 EN 50173-5 EN 50288-4-2
