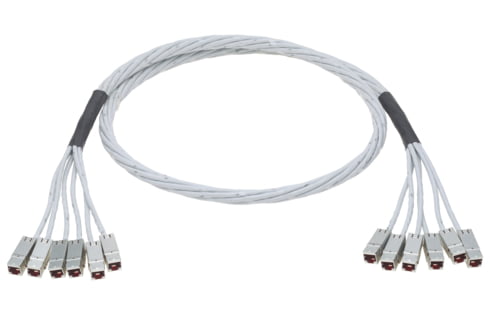

Trunk cable CU PL, Cat. 7, 6x4P single cable & foil, AWG23, Eca, Modul RJ45 Cat. 6 Real 10/s, -Modul RJ45 Cat. 6 Real 10/s, 7.5 (R803894)

Trunk cable CU PL, Cat. 7, 6x4P single cable & foil, AWG23, Eca, Modul  RJ45 Cat. 6 Real 10/s, -Modul RJ45 Cat. 6 Real 10/s, 7.5 (R803894)

Trunk cable CU PL, Cat. 7, 6x4P single cable & foil, AWG23, Eca, Modul RJ45 Cat. 6 Real 10/s, -Modul RJ45 Cat. 6 Real 10/s, 7.5 (R803894)

Wiring diagram: TIA 568-A or B

Leg length: 20 cm

Cable identification: S/FTP

Outer jacket: LSZH

Conductor diameter: AWG 23/1 (solid wire)

Screened in pairs: AL/polyester foil

Overall screen: copper braid

Outer diameter: 22.1 mm

Customized Lengths up to 80 m

Customized Labeling on both ends

Артикул: R803894 Категорія:
Mechanical Data

Color Code RAL

9001 Cream

Cable length

7.5 m

Technical Data

Number of wires

48

Cable type

Trunk cable

Category

Cat. 7

Jacket material

LSZH

Cable jacket characteristics

Cable, metal-free

flame retardant

zero-halogen

Stranding

6 x 4 pairs

Wire diameter

AWG 23

Shielding

S/FTP

Cable overall diameter

Ø 1 x 4P, 7.9 mm / 6 x 4P, 22.1 mm

Category connector (B)

Real10 Cat. 6

Connector type (A)

RJ45

Shielding connector (A)

shielded

Shielding connector (B)

shielded

Max. test frequency

900

PoE

Yes

Standard

IEC 61156-6

ISO/IEC 11801

EN 50173-5

EN 50288-4-2

Prod
